Z86E8316 Series

Manufacturer: ZiLOG

Catalog

IC MCU 8BIT 4KB OTP 28DIP

Part	Core Size	Speed	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Program Memory Type	Core Processor	Data Converters	RAM Size	Program Memory Size	Oscillator Type	Peripherals	Package / Case	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]
ZiLOG Z86E8316PSC	8-Bit	16 MHz	21	5.5 V	3.5 V	Through Hole	0 °C	70 °C	OTP	Z8	A/D 8x8b	237 x 8	4 KB	Internal	POR WDT	28-DIP	15.24 mm	0.6 in

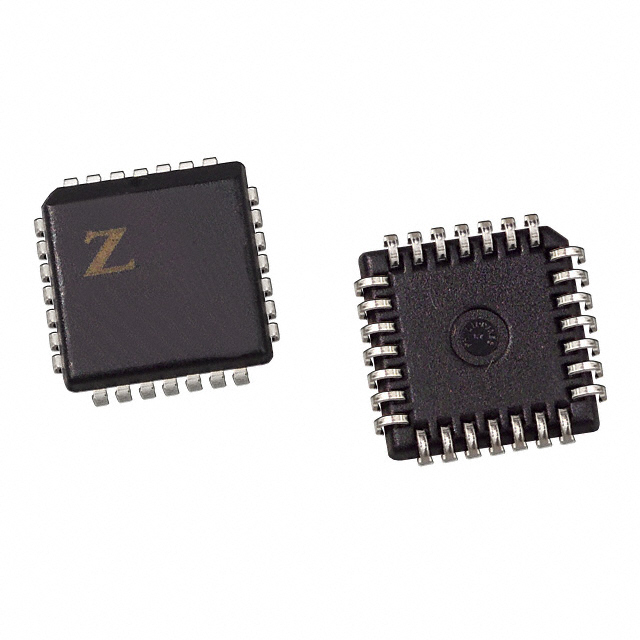

ZiLOG Z86E8316VEC	8-Bit	16 MHz	21	5.5 V	3.5 V	Surface Mount	-40 °C	105 °C	OTP	Z8	A/D 8x8b	237 x 8	4 KB	Internal	POR WDT	28-LCC (J-Lead)
ZiLOG Z86E8316SEC	8-Bit	16 MHz	21	5.5 V	3.5 V	Surface Mount	-40 °C	105 °C	OTP	Z8	A/D 8x8b	237 x 8	4 KB	Internal	POR WDT	28-SOIC			0.295 "	7.5 mm
ZiLOG Z86E8316VEC00TR	8-Bit	16 MHz	21	5.5 V	3.5 V	Surface Mount	-40 °C	105 °C	OTP	Z8	A/D 8x8b	237 x 8	4 KB	Internal	POR WDT	28-LCC (J-Lead)
ZiLOG Z86E8316SEG	8-Bit	16 MHz	21	5.5 V	3.5 V	Surface Mount	-40 °C	105 °C	OTP	Z8	A/D 8x8b	237 x 8	4 KB	Internal	POR WDT	28-SOIC			0.295 "	7.5 mm
