HMC482 Series

SiGe HBT Gain Block Amplifier SMT, DC - 5 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

SiGe HBT Gain Block Amplifier SMT, DC - 5 GHz

Part	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Contents	Frequency [Max]	Type	Package / Case	Current - Supply	Mounting Type	Noise Figure [Max]	Noise Figure [Min]	Gain	P1dB	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Test Frequency	Noise Figure

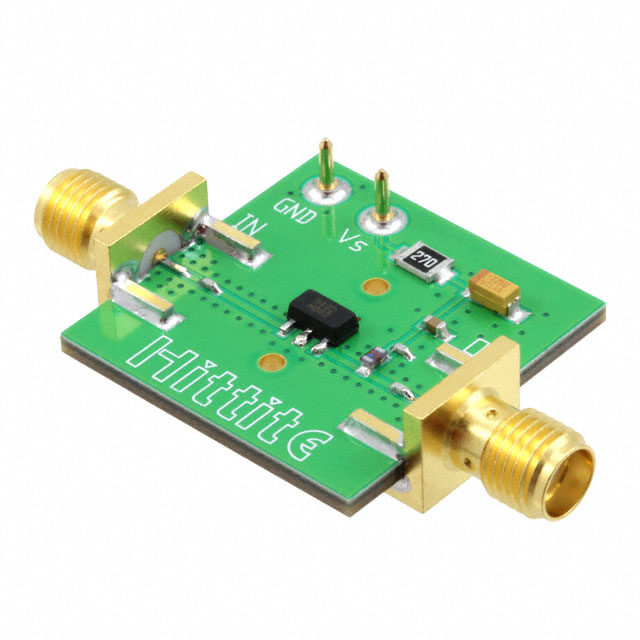

Analog Devices Inc./Maxim Integrated 109026-HMC482ST89	Board(s)	HMC482ST89	HMC482ST89	Board(s)	5 GHz	Amplifier
Analog Devices Inc./Maxim Integrated HMC482ST89					5 GHz		TO-243AA	110 mA	Surface Mount	5.5 dB	4 dB	19 dB	22.5 dBm	6 V	12 V	General Purpose
Analog Devices Inc./Maxim Integrated HMC482ST89ETR					5 GHz		TO-243AA	110 mA	Surface Mount	5.5 dB	4 dB	19 dB	22.5 dBm	6 V	12 V	General Purpose
Analog Devices Inc./Maxim Integrated HMC482ST89TR					5 GHz		TO-243AA	110 mA	Surface Mount			19 dB	22.5 dBm	6 V	12 V	WiMAX WLAN	5 GHz	5.5 dB
Analog Devices Inc./Maxim Integrated HMC482ST89E					5 GHz		TO-243AA	110 mA	Surface Mount	5.5 dB	4 dB	19 dB	22.5 dBm	6 V	12 V	General Purpose

Catalog

SiGe HBT Gain Block Amplifier SMT, DC - 5 GHz

Description

The HMC482ST89(E) is a SiGe Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT amplifier covering DC to 5 GHz. Packaged in an industry standard SOT89, the amplifier can be used as a cascadable 50 Ohm RF/IF gain stage as well as a LO or PA driver with up to +24 dBm output power. The Darlington feedback pair results in reduced sensitivity to normal process variations and excellent gain stability over temperature while requiring a minimal number of external bias components.ApplicationsCellular / PCS / 3GFixed Wireless, WLAN & WiMAXCATV, Cable Modem & DBSMicrowave Radio & Test Equipment
