104966 Series

Catalog

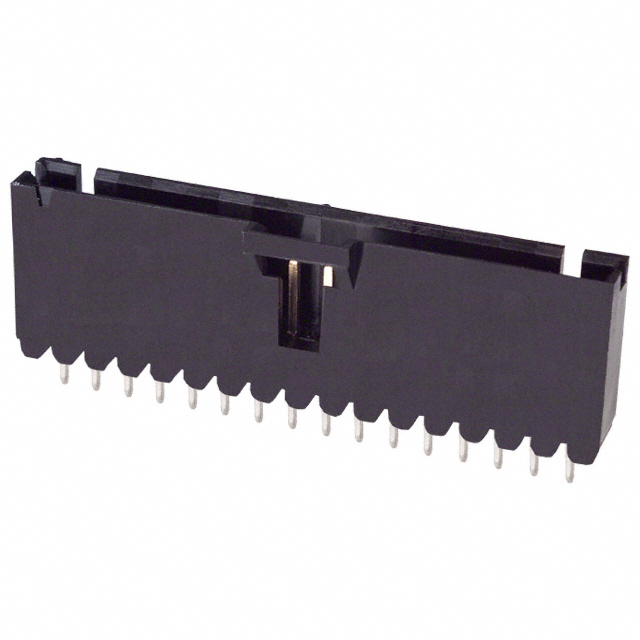

CONN HEADER VERT 16POS 2.54MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Connector Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Style	Number of Positions	Contact Finish - Mating	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Material Flammability Rating	Insulation Color	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Contact Finish - Post	Insulation Material
TE Connectivity AMP Connectors 5-104966-1	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Square	Header	13.6 mm	0.535 in	0.23 in	5.84 mm	Board to Board Cable	16	Gold	Brass	Shrouded - 4 Wall	0.1 "	2.54 mm	Male Pin	UL94 V-0	Black	Keying Slot	Solder	105 ░C	-65 ░C	Through Hole	All	0.38 µm	15 µin	1	Latch Holder	Tin	Liquid Crystal Polymer (LCP)
