NPPC222 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

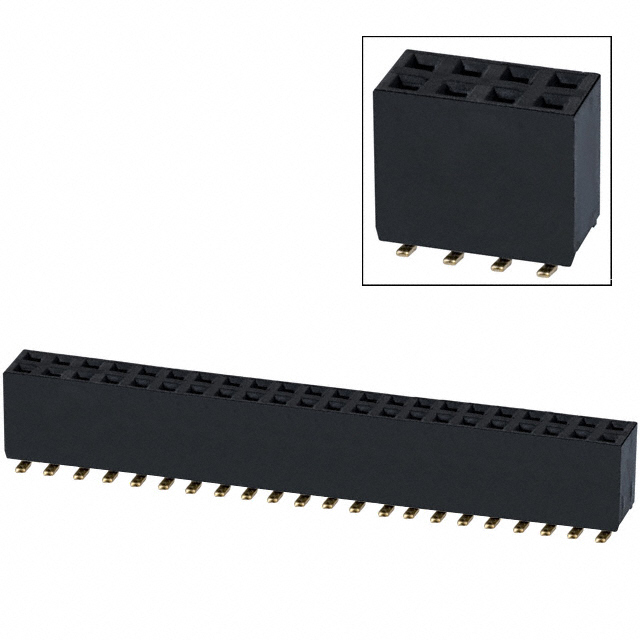

CONN HDR 44POS 0.1 GOLD SMD
| Part | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Contact Material | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Contact Finish - Post | Current Rating (Amps) | Voltage Rating | Mounting Type | Contact Type | Number of Rows [custom] | Fastening Type | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Insulation Height [z] | Insulation Height | Insulation Color | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Flash | 0.1 " | 2.54 mm | All | 44 | Gold | 3 A | 250 V | Surface Mount | Female Socket | 2 | Push-Pull | Solder | 0.1 in | 2.54 mm | Header | 0.299 " | 7.6 mm | Black | Gold | UL94 V-0 | 125 °C | -40 C |
