OSTTJ10 Series

Catalog

TERM BLOCK PLUG 10POS STR 3.5MM

Part	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Housing Material	Torque - Screw	Torque - Screw	Positions Per Level	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Pitch	Pitch	Number of Positions	Mounting Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Color	Wire Gauge or Range - mm²	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC

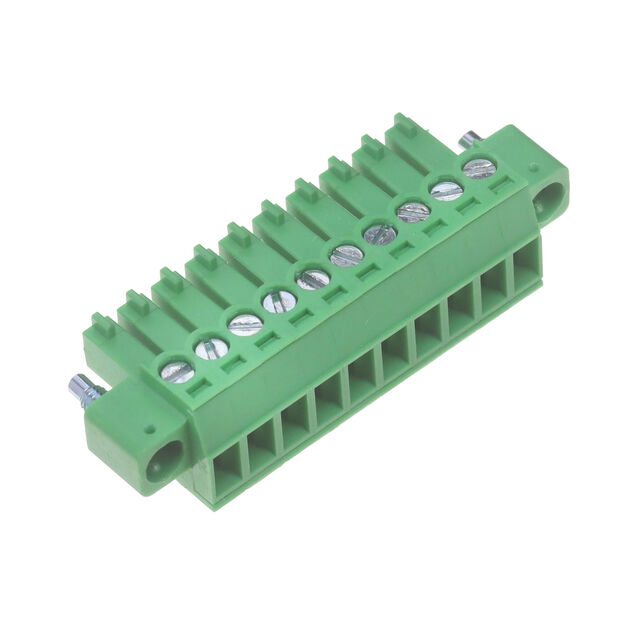

On Shore Technology Inc. OSTTJ1011520	Brass	7 mm	6 mm	UL94 V-0	Brass	0.28 Nm	2.5 Lb-In	10	Plug Female Sockets	16 AWG	26 AWG	Screw	3.5 mm	0.138 "	10	Free Hanging (In-Line)	300 V	-30 ░C	105 ░C	1
On Shore Technology Inc. OSTTJ100152	Brass	8 mm	7 mm	UL94 V-0	Brass	0.56 Nm	5 Lb-In	10	Plug Female Sockets	12 AWG	24 AWG	Screw	7.62 mm	0.3 in	10	Free Hanging (In-Line)	300 V	-30 ░C	105 ░C	1
On Shore Technology Inc. OSTTJ1031520	Brass	7 mm	6 mm	UL94 V-0	Brass	0.28 Nm	2.5 Lb-In	10	Plug Female Sockets	16 AWG	26 AWG	Screw	3.81 mm	0.15 in	10	Free Hanging (In-Line)	300 V	-30 ░C	105 ░C	1	Green	1.5 mm²
On Shore Technology Inc. OSTTJ105103	Brass	8 mm	7 mm	UL94 V-0	Brass	0.56 Nm	5 Lb-In	10	Plug Female Sockets	12 AWG	24 AWG	Screw	5.08 mm	0.2 in	10	Free Hanging (In-Line)	300 V	-30 ░C	105 ░C	1	Black		Tin	0.34 mm²	2.5 mm²	300 V

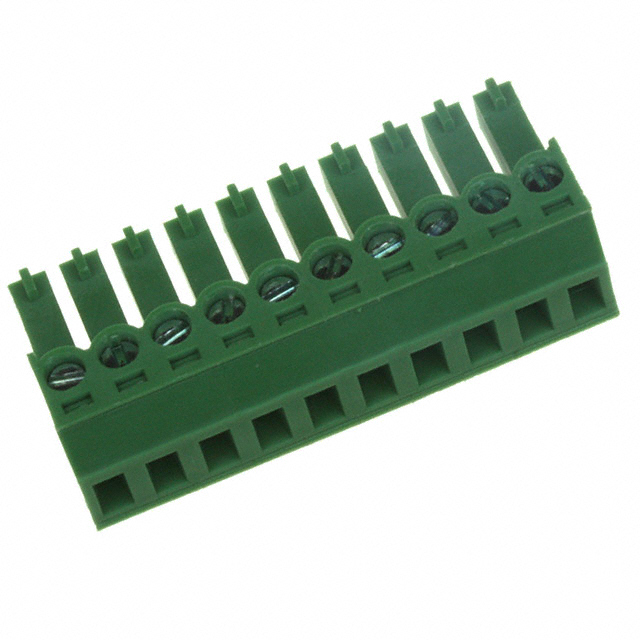

On Shore Technology Inc. OSTTJ1031530	Brass	7 mm	6 mm		Brass	0.28 Nm	2.5 Lb-In	10	Plug Female Sockets	16 AWG	26 AWG	Screw	3.81 mm	0.15 in	10	Free Hanging (In-Line)	300 V	-40 C	115 °C	1	Green	1.5 mm²
