74ACT7811 Series

Catalog

IC FIFO SYNC 1KX18 20NS 80LQFP

Part	Memory Size	Package / Case	Current - Supply (Max) [Max]	Function	Data Rate	Expansion Type	Access Time	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Bus Directional	Supplier Device Package
Texas Instruments SN74ACT7811-20PN	18 K	80-LQFP	1 mA	Synchronous	28.5 MHz	Depth Width	20 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional
Texas Instruments SN74ACT7811-15PN	18 K	80-LQFP	1 mA	Synchronous	40 MHz	Depth Width	15 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional
Texas Instruments SN74ACT7811-25PN	18 K	80-LQFP	1 mA	Synchronous	16.7 MHz	Depth Width	25 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional
Texas Instruments SN74ACT7811-18PN	18 K	80-LQFP	1 mA	Synchronous	35 MHz	Depth Width	18 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional

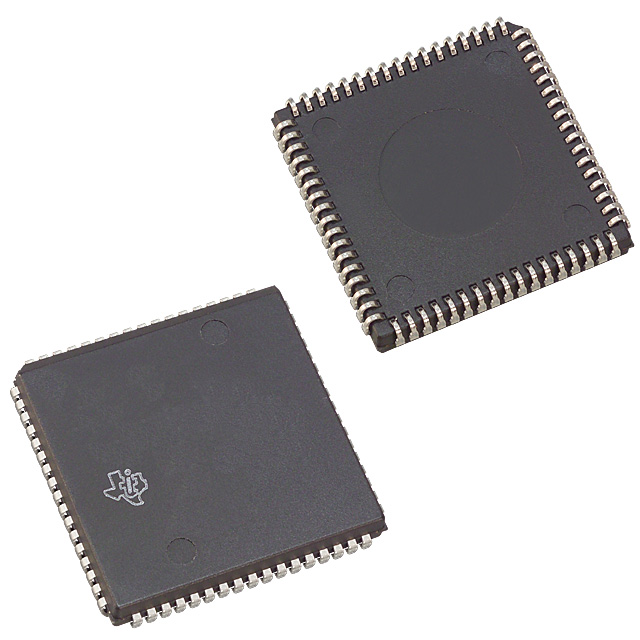

Texas Instruments SN74ACT7811-15FN	18 K	68-LCC (J-Lead)	1 mA	Synchronous	40 MHz	Depth Width	15 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional	68-PLCC (24.23x24.23)
Texas Instruments SN74ACT7811-25FN	18 K	68-LCC (J-Lead)	1 mA	Synchronous	16.7 MHz	Depth Width	25 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional	68-PLCC (24.23x24.23)
Texas Instruments SN74ACT7811-20FN	18 K	68-LCC (J-Lead)	1 mA	Synchronous	28.5 MHz	Depth Width	20 ns	70 °C	4.5 V	5.5 V	Surface Mount	Uni-Directional	68-PLCC (24.23x24.23)
