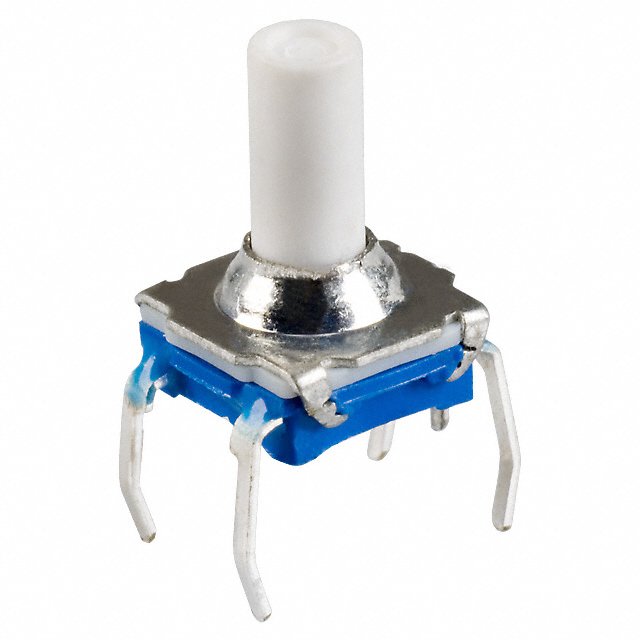

GSE10.00 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Mechanical Life | Actuator Material | Actuator Orientation | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Features | Mounting Type | Actuator Type | Switch Function | Operating Force | Outline [y] | Outline [x] | Illumination | Contact Rating @ Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.3 mm | 400000 Cycles | Liquid Crystal Polymer (LCP) | Top Actuated | SPST-NO | 85 °C | -40 C | 10 mm | Grounding Pin | Through Hole | Standard | Off-Mom | 130 gf | 7.2 mm | 7.2 mm | Non-Illuminated | 0.05 A 50 VDC | PC Pin |
