206866 Series

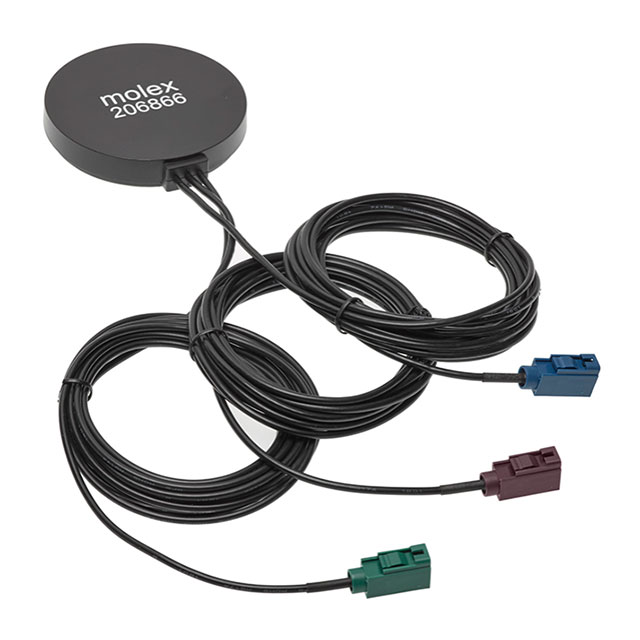

3-in-1 (4G/Wi-Fi/GPS) External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
Manufacturer: Molex
Catalog
3-in-1 (4G/Wi-Fi/GPS) External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
Beta
⌘K
3-in-1 (4G/Wi-Fi/GPS) External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
3-in-1 (4G/Wi-Fi/GPS) External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
3-in-1 (4G/Wi-Fi/GPS) External Antenna, 77.00mm Diameter, 3.0m Cables with Fakra Connectors
| Part | Termination | Frequency Range [Min] | Frequency Range [Max] | Return Loss [Max] | Return Loss [Min] | Frequency (Center/Band) | Height (Max) [Max] | Height (Max) [Max] | Gain | VSWR | Mounting Type | Frequency Group | RF Family/Standard | Features | Features | Number of Bands | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Fakra SMB | 1.575 GHz 1.71 GHz 2.4 GHz 824 MHz | 1.602 GHz 2.48 GHz 2.69 GHz 960 MHz | -6 dB | -10 dB | 1.58 GHz 2.2 GHz 2.44 GHz 892 MHz | 15 mm | 0.591 in | -2.7 dBi -1 dBi 0 dBi 3 dBi | 2 3 | Adhesive | Wide Band | Bluetooth Cellular Navigation WiFi | Cable | 3 m | 4 | Bluetooth Cellular GPS Wi-Fi |
