POWER INDUCTORS - SMD 963-LBQNA251818T100K RPLCMT PN 1007 10UH 20% 0.25A 0.25OHM

Part	DC Resistance (DCR)	Package / Case	Material - Core	Supplier Device Package	Mounting Type	Current - Saturation (Isat)	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Type	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Current Rating (Amps)	Frequency - Self Resonant	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Taiyo Yuden CB2518T100K8	250 mOhm	1007 (2518 Metric)	Ferrite	1007	Surface Mount	250 mA	10 %	-40 C	105 ░C	0.079 in	2 mm	2.52 MHz	Wirewound	10 µH	0.071 in	2.5 mm	0.098 in	1.8 mm	Shielded	600 mA	30 MHz
Taiyo Yuden CBL2012T470M		0805	Ferrite	0805 (2012 Metric)	Surface Mount	100 mA	20 %	-40 C	105 ░C	1 mm		100 kHz	Drum Core Wirewound	47 µH	0.049 "	2 mm	0.079 in	1.25 mm	Semi-Shielded Unshielded	140 mA	11 MHz	0.039 in	5.46 Ohm
Taiyo Yuden CB2518T221K		1007 (2518 Metric)	Ferrite	1007 (2518 Metric)	Surface Mount	50 mA	10 %	-40 C	105 ░C	0.079 in	2 mm	0.796 MHz	Drum Core Wirewound	220 µH	0.071 in	2.5 mm	0.098 in	1.8 mm	Semi-Shielded	0.18 A	5.5 MHz		5.85 Ohm

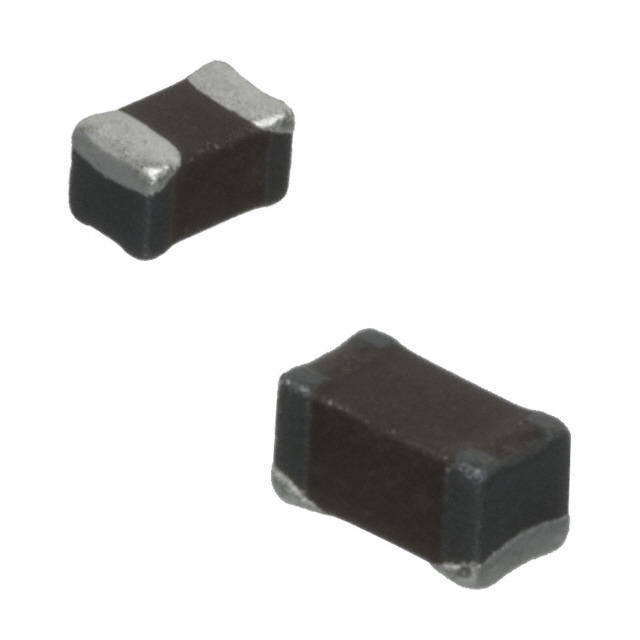

Taiyo Yuden CBMF1608T3R3M	286 mOhm	0603	Ferrite	0603 (1608 Metric)	Surface Mount	170 mA	20 %	-40 C	105 ░C	1 mm		7.96 MHz	Drum Core Wirewound	3.3 µH	0.031 in	1.6 mm	0.063 "		Unshielded	0.5 A	60 MHz	0.039 in		0.8 mm	1608 Metric
Taiyo Yuden CB2016T2R2M		0806 (2016 Metric)	Ferrite	0806 (2016 Metric)	Surface Mount	510 mA	20 %	-40 C	105 ░C	1.8 mm		7.96 MHz	Drum Core Wirewound	2.2 µH	0.063 "	2 mm	0.079 in	1.6 mm	Semi-Shielded	1 A		0.071 in	169 mOhm
Taiyo Yuden CB2012T680M	6 Ohm	0805	Ferrite	0805	Surface Mount	70 mA	20 %	-40 C	105 ░C			2.52 MHz	Wirewound	68 µH	0.049 "	2 mm	0.079 in	1.25 mm	Unshielded	140 mA	10 MHz					0.057 in	1.45 mm
Taiyo Yuden CB2518T220M		1007 (2518 Metric)	Ferrite	1007 (2518 Metric)	Surface Mount		20 %	-40 C	105 ░C	0.079 in	2 mm	2.52 MHz	Drum Core Wirewound	22 µH	0.071 in	2.5 mm	0.098 in	1.8 mm	Unshielded	580 mA	19 MHz		650 mOhm
