RFD-1688 Series
Manufacturer: RF Industries
Beta
⌘K

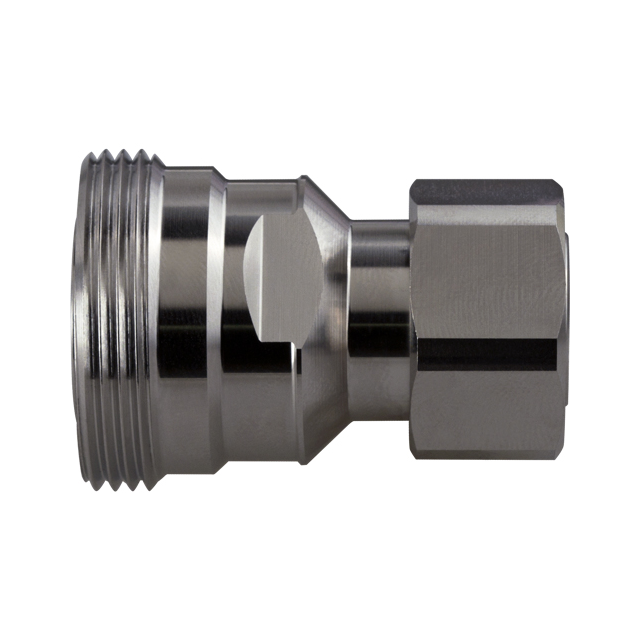

COAX ADAPT 7/16 DIN TO 4.3/10
| Part | Body Material | Body Finish | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Center Contact Material | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Style | Fastening Type | Center Gender | Conversion Type | Center Contact Plating | Impedance | Convert From (Adapter End) | Adapter Series | Frequency - Max | Adapter Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | 155 °C | -40 °C | Beryllium Copper | 7/16 Jack | Female Socket | Straight | Threaded | Female Male | Between Series | Silver | 50 Ohm | 10 Plug 4.3 Male Pin | 7/16 DIN to 4.3/10 | 6000 MHz | Plug to Jack | Free Hanging (In-Line) |
