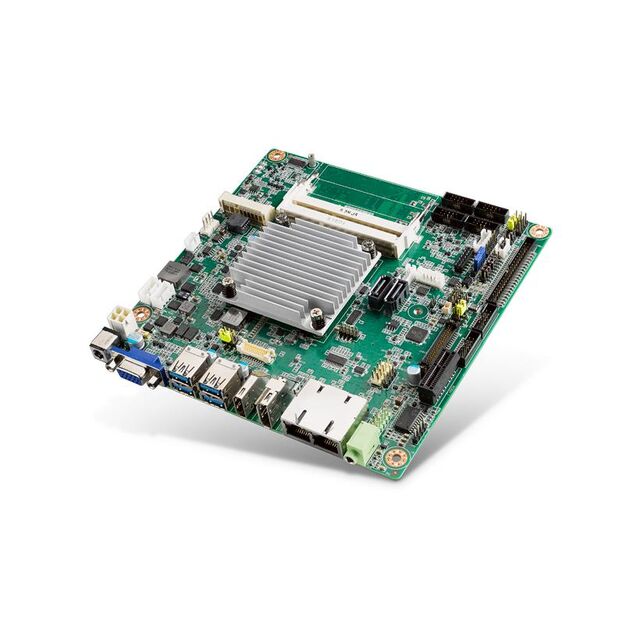

AIMB-217 Series
Manufacturer: Advantech Corporation
Beta
⌘K
SBC 1.1GHZ 4 CORE 8GB/0GB RAM
| Part | Expansion Site/Bus | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | Number of Cores | Cooling Type | Ethernet | Ethernet | Operating Temperature [Min] | Operating Temperature [Max] | Form Factor | Watchdog Timer | Storage Interface | Video Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Speed | RAM Capacity/Installed | USB | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advantech Corporation | M.2 mPCIe PCIe | 6 | 6 | 6 | 4 | Heat Sink | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | 0 °C | 60 °C | mini-ITX | mSATA SATA 3.0 | DP++ eDP HDMI LVDS VGA | 6.693 in | 170 mm | 6.693 " | 170 mm | 1.1 GHz | 0 GB 8 GB | USB 2.0 (4) USB 3.0 (4) | Intel Pentium N4200E | |
 Advantech Corporation | M.2 mPCIe PCIe | 6 | 6 | 6 | 4 | Heat Sink | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | 0 °C | 60 °C | mini-ITX | mSATA SATA 3.0 | DP++ eDP HDMI LVDS VGA | 6.693 in | 170 mm | 6.693 " | 170 mm | 1.1 GHz | 0 GB 8 GB | USB 2.0 (4) USB 3.0 (4) | Intel Pentium N4200E | |
Advantech Corporation | M.2 mPCIe PCIe | 6 | 6 | 6 | 4 | Heat Sink | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | 0 °C | 60 °C | mini-ITX | mSATA SATA 3.0 | DP++ eDP HDMI LVDS VGA | 6.693 in | 170 mm | 6.693 " | 170 mm | 1.1 GHz | 0 GB 8 GB | USB 2.0 (4) USB 3.0 (4) | Intel Pentium N4200E | |
Advantech Corporation | M.2 mPCIe PCIe | 6 | 6 | 6 | 4 | Heat Sink | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | 0 °C | 60 °C | mini-ITX | mSATA SATA 3.0 | DP++ eDP HDMI LVDS VGA | 6.693 in | 170 mm | 6.693 " | 170 mm | 1.1 GHz | 0 GB 8 GB | USB 2.0 (4) USB 3.0 (4) | Intel Pentium N4200E |
