2ED020 Series

Manufacturer: INFINEON

Catalog

IC GATE DRVR HALF-BRIDGE DSO18-2

Part	Gate Type	Rise / Fall Time (Typ)	Channel Type	Logic Voltage - VIL, VIH	High Side Voltage - Max (Bootstrap) [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Mounting Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
INFINEON 2ED020I06FIXUMA1	IGBT MOSFET (N-Channel) N-Channel MOSFET	20 ns	Independent	0.8 V 2 V	650 V	2 A	1 A	2	18-SOIC	0.295 " 7.5 mm	18 V	14 V	Half-Bridge	PG-DSO-18-2	-40 C	125 °C	Inverting	Surface Mount
INFINEON 2ED020I12FIXUMA1	IGBT MOSFET (N-Channel) N-Channel MOSFET	20 ns	Independent	0.8 V 2 V	1.2 kV	2 A	1 A	2	18-SOIC	0.295 " 7.5 mm	18 V	14 V	Half-Bridge	PG-DSO-18-2	-40 °C	150 °C	Inverting	Surface Mount

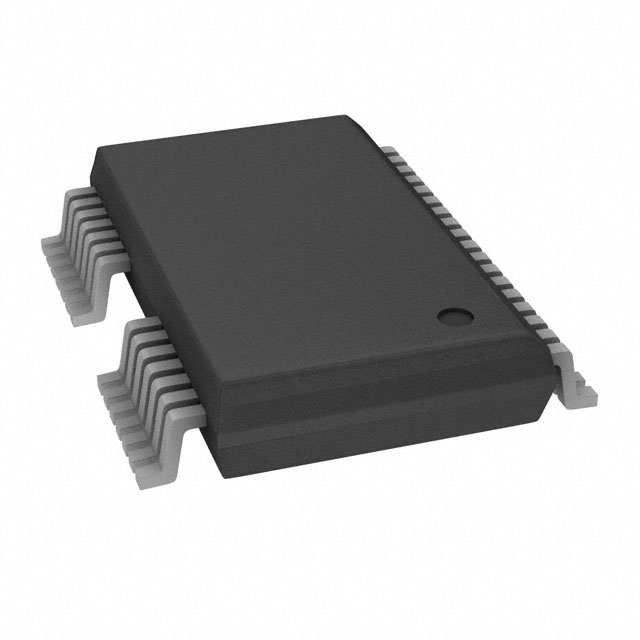

INFINEON 2ED020I12FAXUMA2	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET		Independent	1.5 V 3.5 V	1.2 kV			2	36-BSSOP	0.295 " 32	20 V	13 V	Half-Bridge	PG-DSO-36-58	-40 °C	150 °C	Inverting Non-Inverting	Surface Mount	7.5 mm	50 ns	30 ns
