R1416050 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

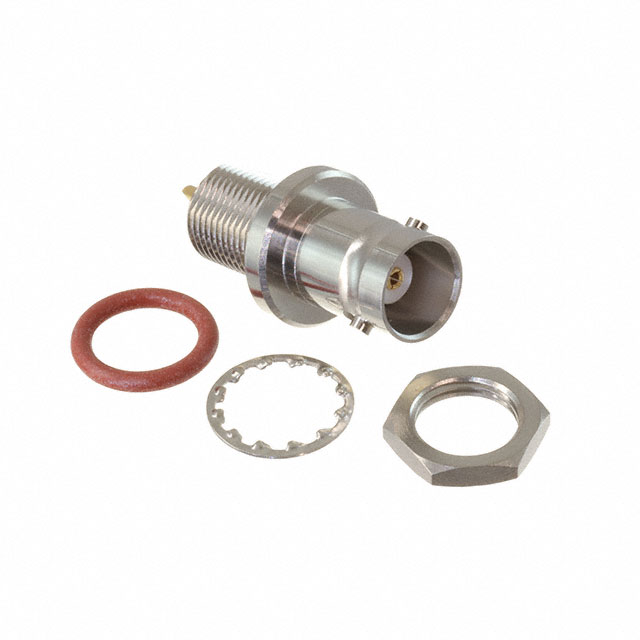

BNC F BHD E SEAL UG 657AU
| Part | Body Material | Mating Cycles | Body Finish | Includes | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Housing Color | Contact Termination | Connector Type | Mounting Feature | Number of Ports | Connector Style | Impedance | Fastening Type | Shield Termination | Center Contact Material | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 500 | Nickel | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 500 V | Silver | Solder Cup | Receptacle Female Socket | Bulkhead - Rear Side Nut | 1 | BNC | 50 Ohms | Bayonet Lock | Solder | Beryllium Copper | Panel Mount | 4 GHz |
