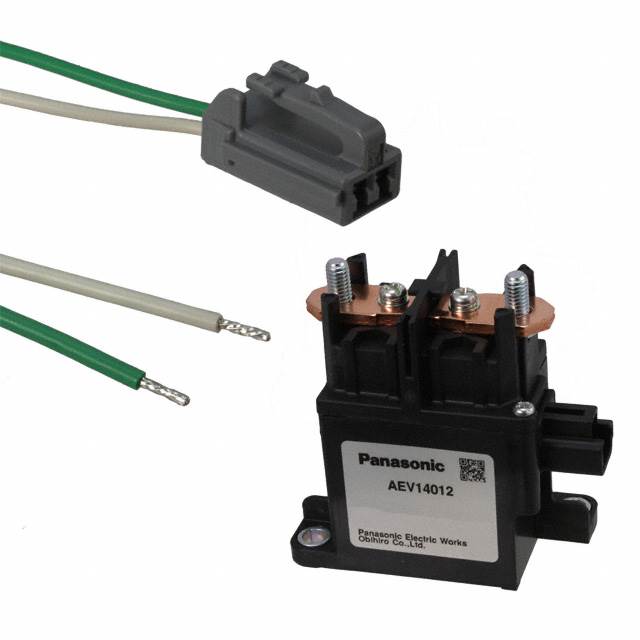

AEV14012 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY AUTOMOTIVE SPST 120A 12V
| Part | Coil Power | Operate Time | Must Release Voltage | Switching Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Coil Type | Contact Form | Coil Voltage | Coil Current | Mounting Type | Release Time | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 4.2 W | 50 ms | 1 VDC | 450 VDC | 9 VDC | 80 °C | -40 C | 120 A | Non Latching | SPST-NO (1 Form A) | 12 VDC | 353 mA | Chassis Mount | 30 ms | Stud |
