IPS60R2 Series
Manufacturer: INFINEON
Beta
⌘K
CONSUMER
| Part | Technology | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs [Max] | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Package / Case | Mounting Type | Vgs(th) (Max) @ Id | Vgs (Max) | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

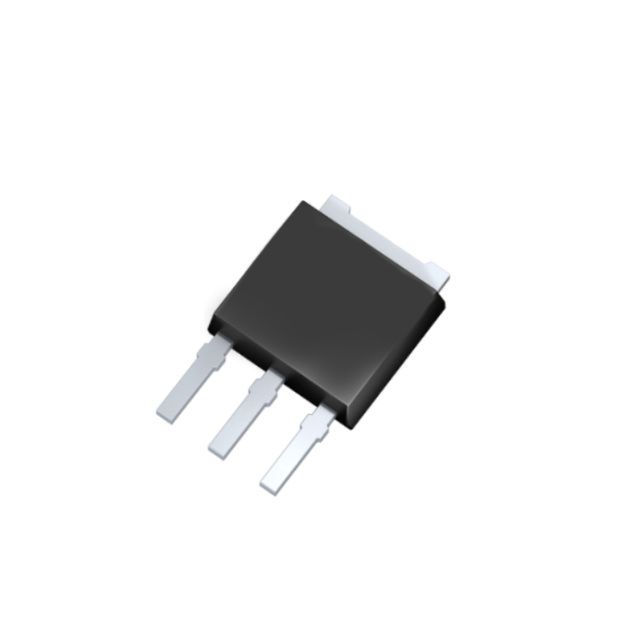

 INFINEON | MOSFET (Metal Oxide) | 600 V | 10 V | N-Channel | PG-TO251-3 | 6.7 nC | 140 pF | 38 W | IPAK TO-251-3 Short Leads TO-251AA | Through Hole | 3.5 V | 20 V | 2.1 Ohm | 3.7 A | -40 °C | 150 °C |
