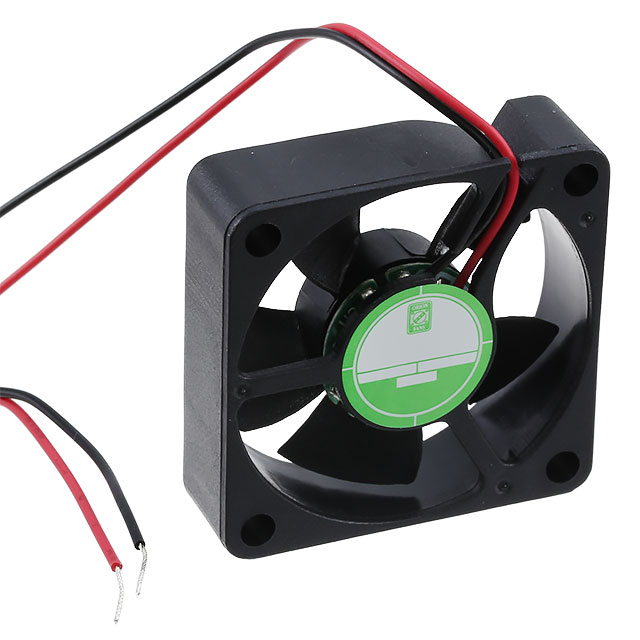

OD3510 Series
Manufacturer: ORION FANS
Beta
⌘K
DC AXIAL FAN, 5 V, SQUARE, 35 MM, 10 MM, BALL BEARING, 6 CFM
| Part | Material - Blade | Material - Frame | Features | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Termination | Bearing Type | Width [y] | Fan Type | Voltage - Rated | Current Rating (Amps) | Air Flow | Air Flow | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Speed Sensor (Tach) | 35 mm | Square | 35 mm | 3 Wire Leads | Ball | 10 mm | Tubeaxial | 5 V | |||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 35 mm | Square | 35 mm | 2 Wire Leads | Ball | 10 mm | Tubeaxial | 12 VDC | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Locked Rotor Sensor | 35 mm | Square | 35 mm | 3 Wire Leads | Ball | 10 mm | Tubeaxial | 12 VDC | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 35 mm | Square | 35 mm | 2 Wire Leads | Sealed Sleeve | 10 mm | Tubeaxial | 5 V | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Speed Sensor (Tach) | 35 mm | Square | 35 mm | 3 Wire Leads | Ball | 10 mm | Tubeaxial | 12 VDC | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 35 mm | Square | 35 mm | 2 Wire Leads | Ball | 10 mm | Tubeaxial | 12 VDC | 60 mA | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 35 mm | Square | 35 mm | 2 Wire Leads | Sealed Sleeve | 10 mm | Tubeaxial | 5 V | ||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Speed Sensor (Tach) | 35 mm | Square | 35 mm | 3 Wire Leads | Sealed Sleeve | 10 mm | Tubeaxial | 12 VDC | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Locked Rotor Sensor | 35 mm | Square | 35 mm | 3 Wire Leads | Ball | 10 mm | Tubeaxial | 5 V | |||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Locked Rotor Sensor | 35 mm | Square | 35 mm | 3 Wire Leads | Ball | 10 mm | Tubeaxial | 12 VDC | 70 mA | 0.143 m³/min | 5.1 CFM | 32.4 Pa | 0.13 in H2O |
