142-0711 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

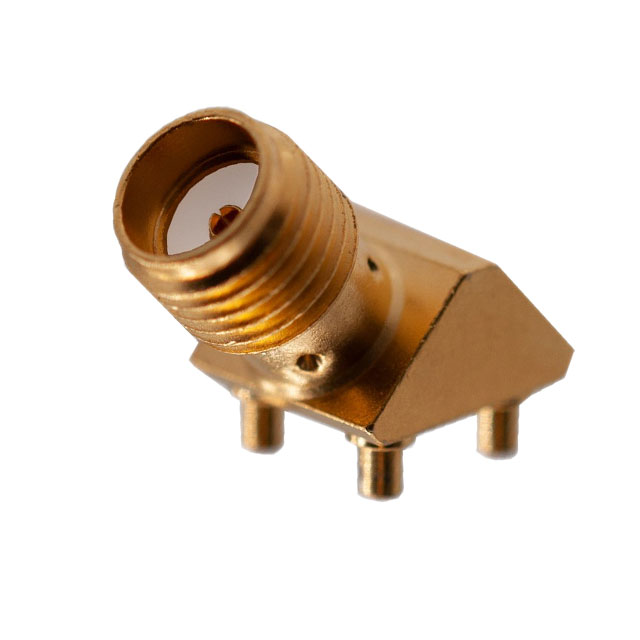

SMA JACK 45 DEGREE PCB MOUNT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Body Material | Voltage Rating | Dielectric Material | Body Finish | Center Contact Material | Contact Termination | Mounting Type | Mounting Type [custom] | Number of Ports | Connector Type | Shield Termination | Connector Style | Impedance | Housing Color | Fastening Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | 85 °C | -40 C | Gold | 500 | Brass | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Solder | Through Hole | 45° | 1 | Female Socket Jack | Solder | SMA | 50 Ohms | Gold | Threaded | 18 GHz |
