GBC33S Series

Catalog

CONN HEADER SMD R/A 33POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Termination	Insulation Color	Contact Material	Contact Finish - Post	Mounting Type	Fastening Type	Connector Type	Contact Finish - Mating	Material Flammability Rating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions [custom]	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

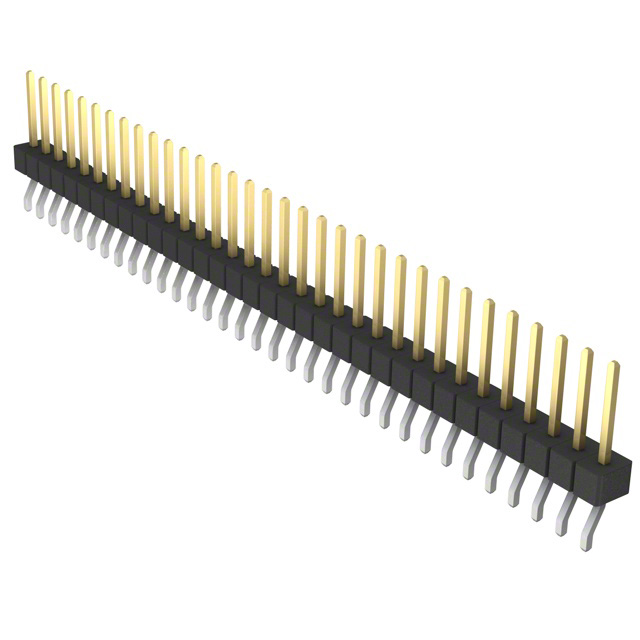

Sullins Connector Solutions GBC33SGSN-M89	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	All	Solder	Black	Phosphor Bronze	Tin	Right Angle Surface Mount	Push-Pull	Header Breakaway	Gold	UL94 V-0	Unshrouded	150 °C	-65 ░C	Board to Board Cable	33	3.56 mm	0.14 in	Male Pin	3 A	8.08 mm	0.318 in	1	Square	0.25 µm	10 µin
Sullins Connector Solutions GBC33SFBN-M30	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	All	Solder	Black	Phosphor Bronze	Tin	Surface Mount	Push-Pull	Header Breakaway	Gold	UL94 V-0	Unshrouded	150 °C	-65 ░C	Board to Board Cable	33	2.54 mm	0.1 in	Male Pin	3 A	8.08 mm	0.318 in	1	Square	0.25 µm	10 µin
Sullins Connector Solutions GBC33SABN-M30	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	All	Solder	Black	Phosphor Bronze	Tin	Surface Mount	Push-Pull	Header Breakaway	Gold	UL94 V-0	Unshrouded	150 °C	-65 ░C	Board to Board Cable	33	2.54 mm	0.1 in	Male Pin	3 A	5.84 mm	0.23 in	1	Square	0.25 µm	10 µin
