Isolated DC/DC Converters - Chassis Mount DC-DC Converter, Quarter Brick, Chassis Mount, 150 Watt, 4:1 Input Range, 43-160VAC Input, 28VDC Output, 88% Efficiency, 5400 F
Isolated DC/DC Converters - Chassis Mount DC-DC Converter, Quarter Brick, Chassis Mount, 150 Watt, 4:1 Input Range, 43-160VAC Input, 28VDC Output, 88% Efficiency, 5400 F
Isolated DC/DC Converters - Chassis Mount DC-DC Converter, Quarter Brick, Chassis Mount, 150 Watt, 4:1 Input Range, 43-160VAC Input, 28VDC Output, 88% Efficiency, 5400 F
| Part | Current - Output (Max) [Max] | Approval Agency | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Power (Watts) | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Isolation | Efficiency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Supplier Device Package | Control Features | Package / Case | Features | Size / Dimension [z] | Size / Dimension [y] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

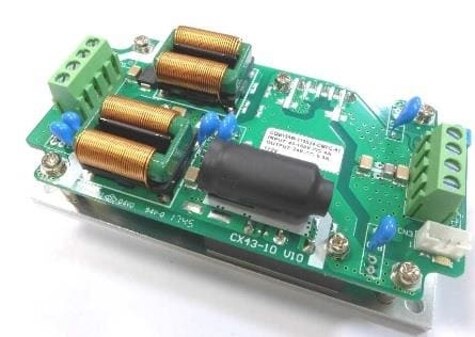

 Cincon Electronics Co. LTD | 6.3 A | CE | ITE (Commercial) Railway | 116.8 mm | 32 mm | 1.26 " | 61 mm | 2.4 in | 4.6 " | Open Frame | 151 W | 43 V | 1 | 3000 V | 88 % | Chassis Mount | 105 C | -40 °C | 24 V | 160 V | |||||||
Cincon Electronics Co. LTD | 3.2 A | CE | ITE (Commercial) Railway | 116.8 mm | 34.2 mm | 1.35 in | 63.4 mm | 2.49 in | 4.6 " | Enclosed | 153 W | 43 V | 1 | 3000 V | Chassis Mount | 105 C | -40 °C | 48 V | 160 V | ||||||||
 Cincon Electronics Co. LTD | 12.5 A | CB CE cURus | ITE (Commercial) | 57.9 mm | 0.5 in | 1.45 in | 2.28 " | Isolated Module | 150 W | 43 V | 1 | 3000 V | 92 % | Through Hole | 105 ░C | -40 C | 12 V | 160 V | Quarter Brick | Active High Enable | Quarter Brick | Adjustable Output Remote On/Off | 12.7 mm | 36.8 mm | 60950-1 | ||
Cincon Electronics Co. LTD | 6.3 A | CE | ITE (Commercial) Railway | 116.8 mm | 34.2 mm | 1.35 in | 63.4 mm | 2.49 in | 4.6 " | Enclosed | 151 W | 43 V | 1 | 3000 V | 88 % | Chassis Mount | 105 C | -40 °C | 24 V | 160 V |
