179974 Series

Catalog

CONN QC RCPT 14-18AWG 0.250

Part	Termination	Tab Length	Tab Length	Gender	Terminal Type	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width	Insulation	Contact Material	Mounting Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]

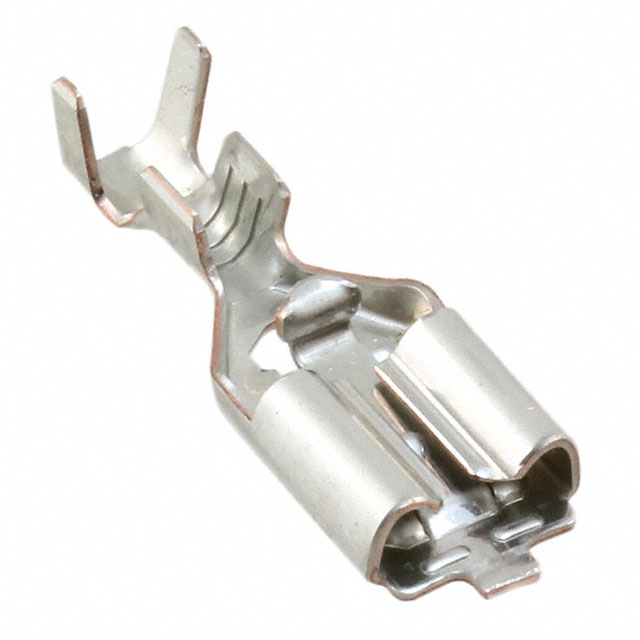

TE Connectivity Raychem Cable Protection 179974-6	Crimp	0.248 in	6.3 mm	Female	Standard	Tin	0.134 in	0.087 in	2.21 mm	3.4 mm	14 AWG	18 AWG	6.35 mm	0.25 in	Non-Insulated	Copper	Free Hanging (In-Line)	0.032 in	0.81 mm	21.2 mm	0.835 in
