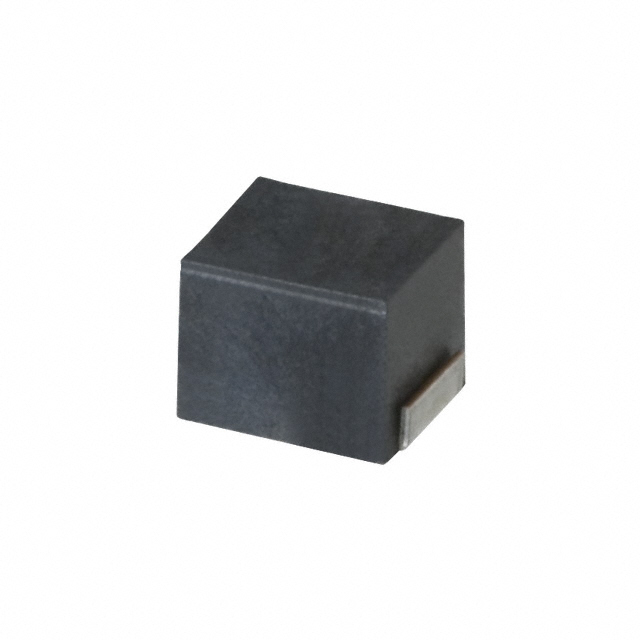

NLFV-PF Series

Catalog

RF INDUCTORS - SMD SUGGESTED ALTERNATE NLFV25T-6R8M-EF

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Q @ Freq	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Tolerance	Type	Package / Case	Mounting Type	Current Rating (Amps)	DC Resistance (DCR) [Max]
TDK Corporation NLFV25T-6R8M-PF	1.9 mm	0.075 "	Shielded	5 7.96 MHz	7.96 MHz	-40 C	105 ░C	38 MHz	2.5 mm	0.079 in	0.098 in	2 mm	6.8 µH	20 %	Wirewound	Nonstandard	Surface Mount	175 mA	348 mOhm
TDK Corporation NLFV25T-1R5M-PF	1.9 mm	0.075 "	Shielded	5 7.96 MHz	7.96 MHz	-40 C	105 ░C	80 MHz	2.5 mm	0.079 in	0.098 in	2 mm	1.5 µH	20 %	Wirewound	Nonstandard	Surface Mount	350 mA	108 mOhm
