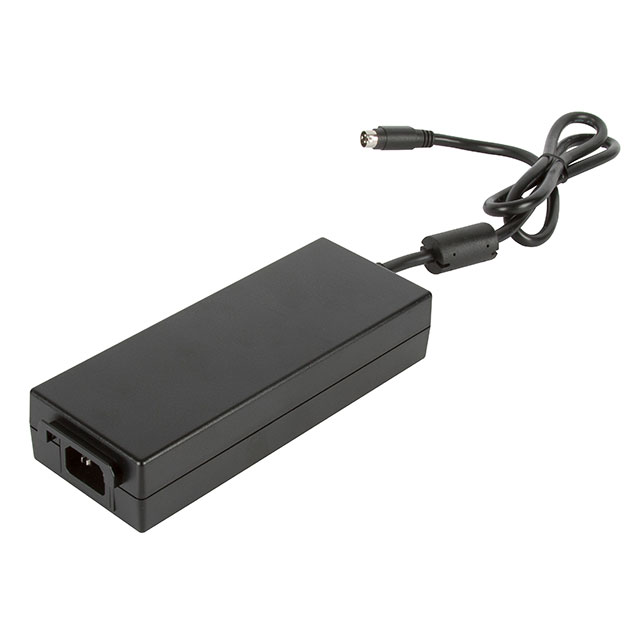

ALM150 Series

Manufacturer: XP Power

Catalog

AC/DC DESKTOP ADAPTER 19V 150W

Part	Operating Temperature [Max]	Efficiency	Input Connector	Voltage - Output	Approval Agency	Output Connector	No Load Power Consumption	Cord Length	Cord Length	Input Type	Form	Current - Output (Max) [Max]	Applications	Region Utilized	Standard Number	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
XP Power ALM150PS19C2-8	60 °C	CoC Tier 2 Level VI	IEC 320-C8	19 V	CB CCC CSA KC PSE RCM TUV UL	Power DIN 4 Pin	150 mW	0.9 m	35.4 in	Cord (Sold Separately)	Desktop (Class II)	7.9 A	ITE (Commercial) Medical	International	60601-1 60950-1 62368-1	150 W	80 VAC	264 VAC	1.49 in	71.9 mm	37.8 mm	7.32 in	185.9 mm	2.83 "
XP Power ALM150PS19	60 °C	CoC Tier 2 Level VI	IEC 320-C14	19 V	CB CE TUV UL	Power DIN 4 Pin	150 mW	0.9 m	35.4 in	Cord (Sold Separately)	Desktop (Class I)	7.9 A	ITE (Commercial)	International	62368-1	150 W	80 VAC	264 VAC	1.49 in	71.9 mm	37.8 mm	7.32 in	185.9 mm	2.83 "
XP Power ALM150PS48C2-8	60 °C	CoC Tier 2 Level VI	IEC 320-C8	48 V	CB CCC CSA KC PSE RCM TUV UL	Power DIN 4 Pin	150 mW	0.9 m	35.4 in	Cord (Sold Separately)	Desktop (Class II)	3.1 A	ITE (Commercial) Medical	International	60601-1 60950-1 62368-1	149 W	80 VAC	264 VAC	1.49 in	71.9 mm	37.8 mm	7.32 in	185.9 mm	2.83 "
XP Power ALM150PS12C2-8	60 °C	CoC Tier 2 Level VI	IEC 320-C8	12 V	CB CCC CSA KC PSE RCM TUV UL	Power DIN 4 Pin	150 mW	0.9 m	35.4 in	Cord (Sold Separately)	Desktop (Class II)	12.5 A	ITE (Commercial) Medical	International	60601-1 60950-1 62368-1	150 W	80 VAC	264 VAC	1.49 in	71.9 mm	37.8 mm	7.32 in	185.9 mm	2.83 "
XP Power ALM150PS15C2-8	60 °C	CoC Tier 2 Level VI	IEC 320-C8	15 V	CB CCC CSA KC PSE RCM TUV UL	Power DIN 4 Pin	150 mW	0.9 m	35.4 in	Cord (Sold Separately)	Desktop (Class II)	10 A	ITE (Commercial) Medical	International	60601-1 60950-1 62368-1	150 W	80 VAC	264 VAC	1.49 in	71.9 mm	37.8 mm	7.32 in	185.9 mm	2.83 "
