5182-3PG Series

Catalog

MULTI-CON CABLE-CABLE #12 SOLDER

Part	Shielding	Mounting Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Ingress Protection	Contact Material	Voltage Rating	Connector Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Color	Primary Material	Features
SWITCHCRAFT/CONXALL 5182-3PG-330	Unshielded	Free Hanging (In-Line)	0.32 in	0.3 in	7.62 mm	8.13 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell
SWITCHCRAFT/CONXALL 5182-3PG-524	Unshielded	Free Hanging (In-Line)	0.27 "	0.24 "	6.1 mm	6.86 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp
SWITCHCRAFT/CONXALL 5182-3PG-521	Unshielded	Free Hanging (In-Line)	0.23 in	0.21 in	5.33 mm	5.84 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp
SWITCHCRAFT/CONXALL 5182-3PG-530	Unshielded	Free Hanging (In-Line)	0.32 in	0.3 in	7.62 mm	8.13 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp
SWITCHCRAFT/CONXALL 5182-3PG-528	Unshielded	Free Hanging (In-Line)	0.29 in	0.28 in	7.11 mm	7.37 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp

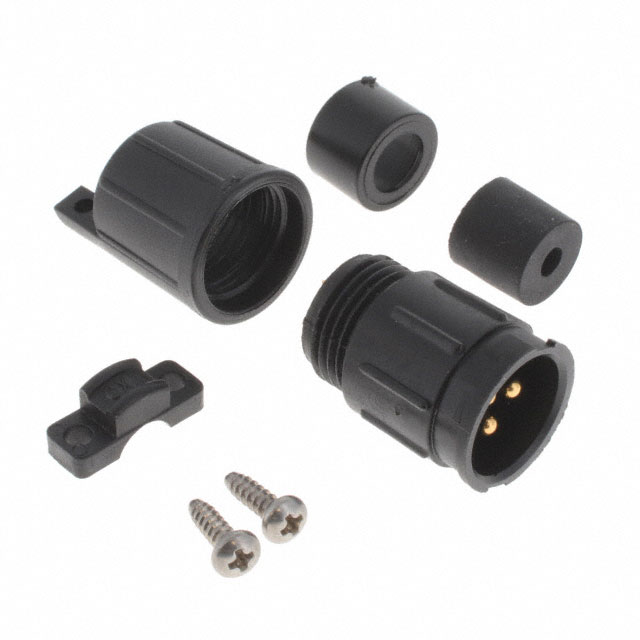

SWITCHCRAFT/CONXALL 5182-3PG-515	Unshielded	Free Hanging (In-Line)	0.17 in	0.15 "	3.81 mm	4.32 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp
SWITCHCRAFT/CONXALL 5182-3PG-315	Unshielded	Free Hanging (In-Line)	0.17 in	0.15 "	3.81 mm	4.32 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell
SWITCHCRAFT/CONXALL 5182-3PG-518	Unshielded	Free Hanging (In-Line)	0.2 "	0.18 "	4.57 mm	5.08 mm	Gold	Nylon Polyamide (PA)	Bayonet Lock	Weathertight	Brass	600 V	Receptacle Male Pins	Keyed	115 °C	-40 C	Black	Plastic	Backshell Cable Clamp
