ASCH Series

Catalog

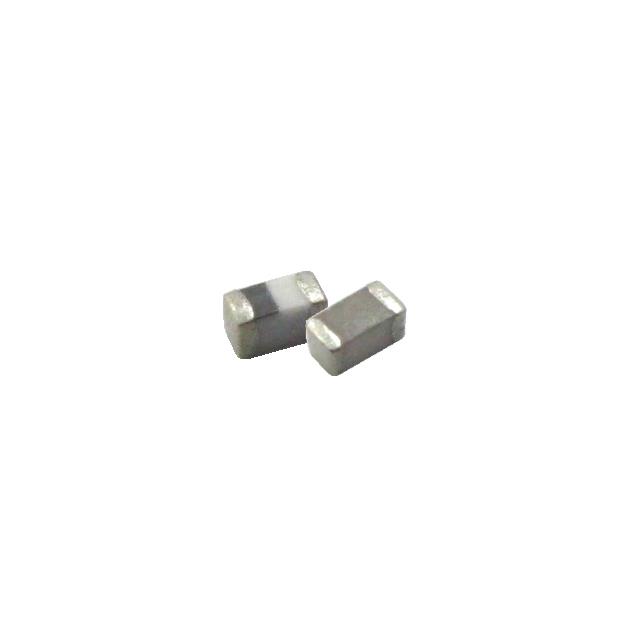

RF INDUCTORS - SMD CHILISIN RF INDUCTOR MULTILAYER-STD

Part	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Inductance Frequency - Test	Q @ Freq	Type	Material - Core	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Frequency - Self Resonant	Shielding	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]
Pulse Electronics ASCH001608085N1S00	600 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	1608 Metric	0603	100 MHz	10 100 MHz	Multilayer	Ceramic	180 mOhm	125 °C	-40 C	5.1 nH	Surface Mount	0.95 mm	0.037 in	0.3 nH	4.1 GHz	Shielded	AEC-Q200
Pulse Electronics ASCH001005059N1JCP	0.3 A	0.02 in	1 mm		0.039 "		0402 (1005 Metric)	100 MHz		Multilayer	Ceramic		125 °C	-55 C	9.1 nH	Surface Mount			5 %	3.9 GHz	Shielded	AEC-Q200	0.6 mm	0.024 in	0402	260 mOhm	8	100 MHz	0.5 mm
Pulse Electronics ASCH0016080856NJ00	400 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	1608 Metric	0603	100 MHz	12 100 MHz	Multilayer	Ceramic	750 mOhm	125 °C	-40 C	56 nH	Surface Mount	0.95 mm	0.037 in	5 %	1.1 GHz	Shielded	AEC-Q200
Pulse Electronics ASCH001005053N6SCP	400 mA	0.02 in	1 mm		0.039 "		0402 (1005 Metric)	100 MHz		Multilayer	Ceramic		125 °C	-55 C	3.6 nH	Surface Mount			0.3 nH	6.1 GHz	Shielded	AEC-Q200	0.6 mm	0.024 in	0402	150 mOhm	8	100 MHz	0.5 mm
Pulse Electronics ASCH0010050533NJCP	0.2 A	0.02 in	1 mm		0.039 "		0402 (1005 Metric)	100 MHz		Multilayer	Ceramic	580 mOhm	125 °C	-40 C	33 nH	Surface Mount			5 %	1.6 GHz	Shielded	AEC-Q200	0.6 mm	0.024 in	0402		8	100 MHz	0.5 mm
Pulse Electronics ASCH001608081N6S00	600 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	1608 Metric	0603	100 MHz		Multilayer	Ceramic		125 °C	-40 C	1.6 nH	Surface Mount	0.95 mm	0.037 in	0.3 nH	8 GHz	Shielded	AEC-Q200				100 mOhm	8	100 MHz
Pulse Electronics ASCH0016080815NJ00	600 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	1608 Metric	0603	100 MHz	12 100 MHz	Multilayer	Ceramic		125 °C	-40 C	15 nH	Surface Mount	0.95 mm	0.037 in	5 %	2.5 GHz	Shielded	AEC-Q200
Pulse Electronics ASCH0010050582NJCP	150 mA	0.02 in	1 mm		0.039 "		0402 (1005 Metric)	100 MHz		Multilayer	Ceramic	1.2 Ohm	125 °C	-40 C	82 nH	Surface Mount			5 %	700 MHz	Shielded	AEC-Q200	0.6 mm	0.024 in	0402		8	100 MHz	0.5 mm
Pulse Electronics ASCH001005055N1SCP	400 mA	0.02 in	1 mm		0.039 "		0402 (1005 Metric)	100 MHz		Multilayer	Ceramic		125 °C	-55 C	5.1 nH	Surface Mount			0.3 nH	5.3 GHz	Shielded	AEC-Q200	0.6 mm	0.024 in	0402	200 mOhm	8	100 MHz	0.5 mm
