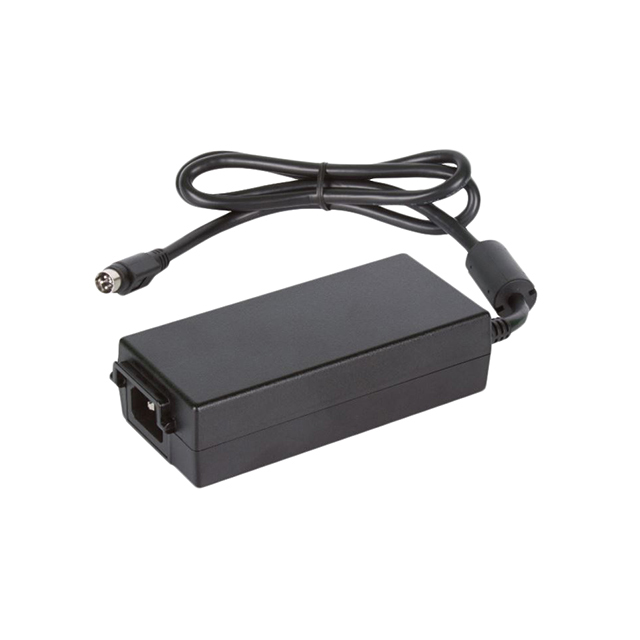

ALM85 Series

Manufacturer: XP Power

Catalog

AC/DC DESKTOP ADAPTER 19V 85W

Part	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Applications	Voltage - Output	Efficiency	No Load Power Consumption	Operating Temperature [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	Polarization	Region Utilized	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Current - Output (Max) [Max]	Cord Length	Cord Length	Input Type
XP Power ALM85US19	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	19 V	CoC Tier 2 Level VI	150 mW	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	85 W	Positive Center	North America	Desktop (Class I)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C14	4.47 A	0.9 m	35.4 in	Cord (Sold Separately)

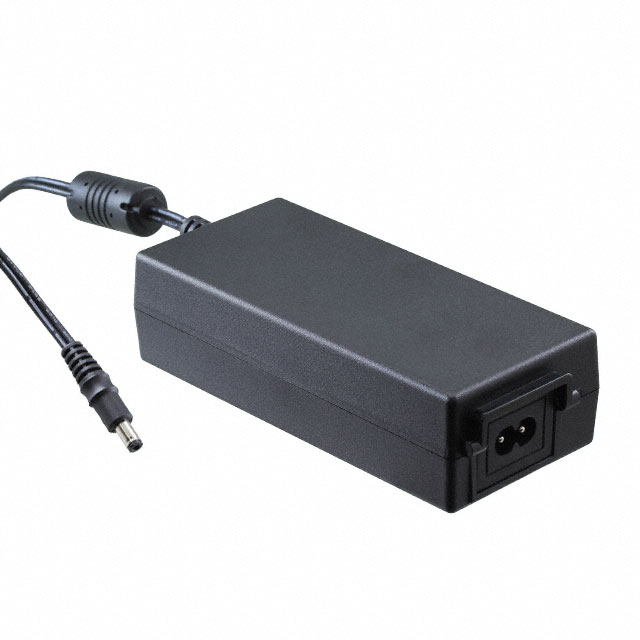

XP Power ALM85US19C2-8	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	19 V	CoC Tier 2 Level VI	150 mW	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	85 W	Positive Center	North America	Desktop (Class II)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C8	4.47 A	0.9 m	35.4 in	Cord (Sold Separately)
XP Power ALM85US12C2-8	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	12 V	CoC Tier 2 Level VI	150 mW	60 °C			Power DIN 4 Pin	85 W		North America	Desktop (Class II)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C8	6.67 A	0.9 m	35.4 in	Cord (Sold Separately)
XP Power ALM85US24C2-8	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	24 V	CoC Tier 2 Level VI	150 mW	60 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	85 W	Positive Center	North America	Desktop (Class II)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C8	3.54 A	0.9 m	35.4 in	Cord (Sold Separately)
XP Power ALM85US15	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	15 V	CoC Tier 2 Level VI	150 mW	60 °C			Power DIN 4 Pin	85 W		North America	Desktop (Class I)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C14	5.33 A	0.9 m	35.4 in	Cord (Sold Separately)
XP Power ALM85US15C2-8	60601-1; 62368-1	80 VAC	264 VAC	CE	ITE (Commercial) Medical	15 V	CoC Tier 2 Level VI	150 mW	60 °C			Power DIN 4 Pin	85 W		North America	Desktop (Class II)	1.46 in	62 mm	5.31 in	37 mm	2.44 "	135 mm	IEC 320-C8	5.33 A	0.9 m	35.4 in	Cord (Sold Separately)
