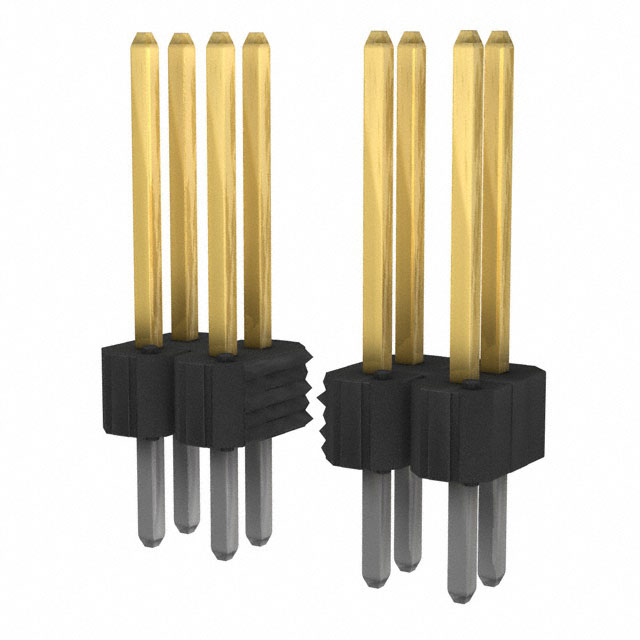

55030 Series

Catalog

CONN HEADER VERT 2POS

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Material Flammability Rating	Connector Type	Fastening Type	Contact Type	Number of Positions Loaded	Contact Material	Contact Shape	Insulation Color	Number of Rows	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Pitch - Mating	Pitch - Mating

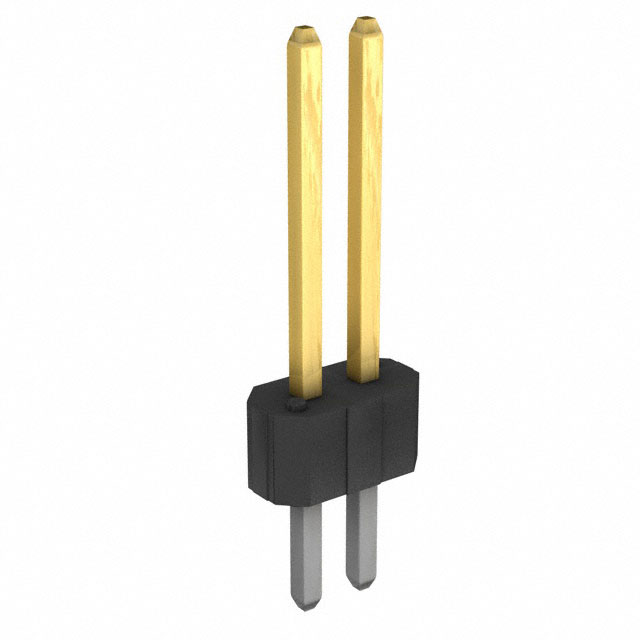

Amphenol ICC (FCI) 55030-202HLF	Through Hole	15 µin	0.38 µm	0.63 "	16 mm	UL94 V-0	Header	Push-Pull	Male Pin	All	Phosphor Bronze	Square	Black	2	Gold or Gold GXT™	9.65 mm	0.38 in	0.1 in	2.54 mm	2	Unshrouded	0.15 in	3.81 mm	2.54 mm	0.1 in	Solder
Amphenol ICC (FCI) 55030-280HLF	Through Hole	15 µin	0.38 µm	0.63 "	16 mm	UL94 V-0	Header	Push-Pull	Male Pin	All	Phosphor Bronze	Square	Black	2	Gold or Gold GXT™	9.65 mm	0.38 in	0.1 in	2.54 mm	80	Unshrouded	0.15 in	3.81 mm	2.54 mm	0.1 in	Solder	0.1 in	2.54 mm
