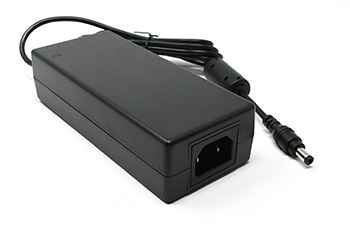

PEAMD120 Series

Medical Desktop Power Supply 48V 130 Watt

Manufacturer: TT Electronics/BI

Catalog

Medical Desktop Power Supply 48V 130 Watt

Catalog

Medical Desktop Power Supply 48V 130 Watt

Part	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [diameter]	Output Connector	Output Connector [x]	Input Connector	Current - Output (Max) [Max]	Form	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	No Load Power Consumption	Region Utilized	Approval Agency	Applications	Input Type	Cord Length	Cord Length	Power (Watts)	Polarization	Current - Output (Max)
TT Electronics/BI PEAMD120-12-B2	12 V	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug	11 mm	IEC 320-C14	10 A	Desktop (Class I)	0 °C	60 °C	Level VI	60601-1	58.4 mm	2.3 in	1.3 in	137.2 mm	33 mm	5.4 in	210 mW	International	CB CE cURus FCC TUV	Medical	Cord (Sold Separately)	47 in	1.2 m	120 W	Positive Center
TT Electronics/BI PEAMD120-14-B2	24 V	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug	11 mm	IEC 320-C14		Desktop (Class I)	0 °C	60 °C	Level VI	60601-1	58.4 mm	2.3 in	1.3 in	137.2 mm	33 mm	5.4 in	210 mW	International	CB CE cURus FCC TUV	Medical	Cord (Sold Separately)	47 in	1.2 m	120 W	Positive Center	5 A
TT Electronics/BI PEAMD120-13-B2	15 V	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug	11 mm	IEC 320-C14	8 A	Desktop (Class I)	0 °C	60 °C	Level VI	60601-1	58.4 mm	2.3 in	1.3 in	137.2 mm	33 mm	5.4 in	210 mW	International	CB CE cURus FCC TUV	Medical	Cord (Sold Separately)	47 in	1.2 m	120 W	Positive Center
TT Electronics/BI PEAMD120-18-B2	48 V	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug	11 mm	IEC 320-C14	2.71 A	Desktop (Class I)	0 °C	60 °C	Level VI	60601-1	58.4 mm	2.3 in	1.3 in	137.2 mm	33 mm	5.4 in	210 mW	International	CB CE cURus FCC TUV	Medical	Cord (Sold Separately)	47 in	1.2 m	130 W	Positive Center
