054363 Series

Manufacturer: Molex

Catalog

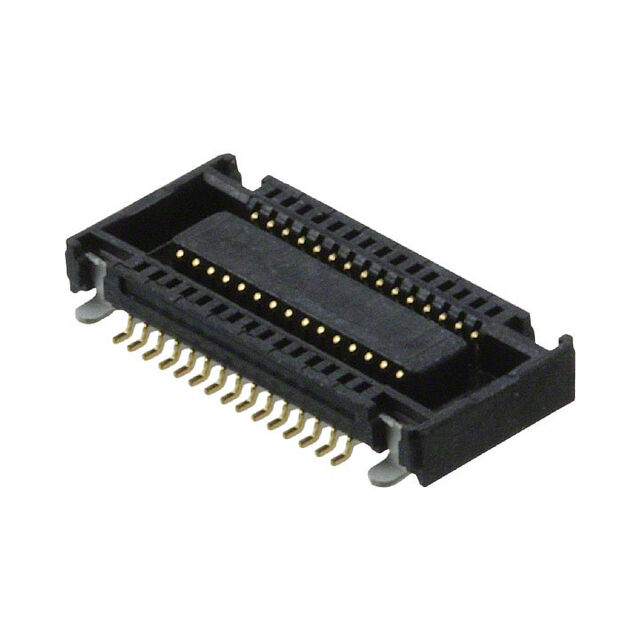

CONN RCPT 30POS SMD GOLD

Part	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish	Mounting Type	Connector Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Molex 0543630389	0.5 mm	0.02 in	30	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
Molex 0543631478	0.5 mm	0.02 in	140	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
Molex 0543631278	0.5 mm	0.02 in	120	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
Molex 0543630878	0.5 mm	0.02 in	80	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
Molex 54363-0278	0.5 mm	0.02 in	20	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
Molex 0543630478	0.5 mm	0.02 in	40	0.059 in	1.5 mm	2 mm 3 mm	Gold	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	2	10 Áin	0.25 Ám
