PB1973 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON DPST 15A 250V

Part	Mechanical Life	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Circuit	Switch Function	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Termination Style	Actuator Marking	Voltage Rating - AC	Mounting Type	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color

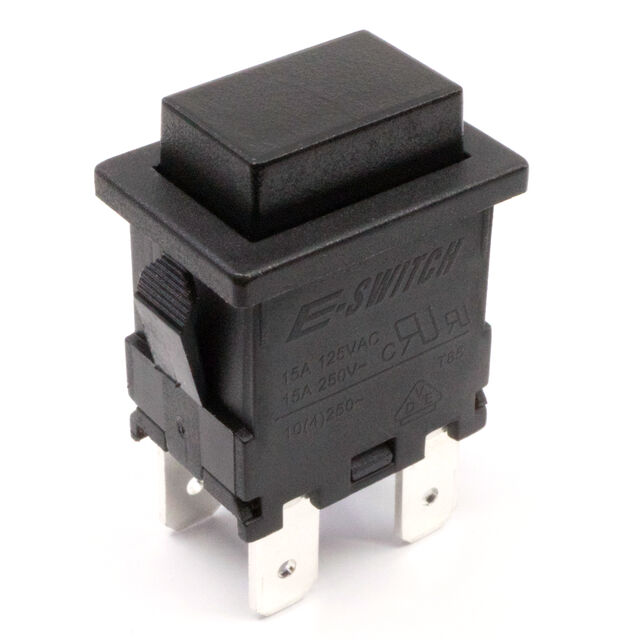

E-Switch PB1973EBLKBLKEF0	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	DPST	On-Off	Standard	19.2 mm	13 mm	55 °C	-10 °C	Black	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular

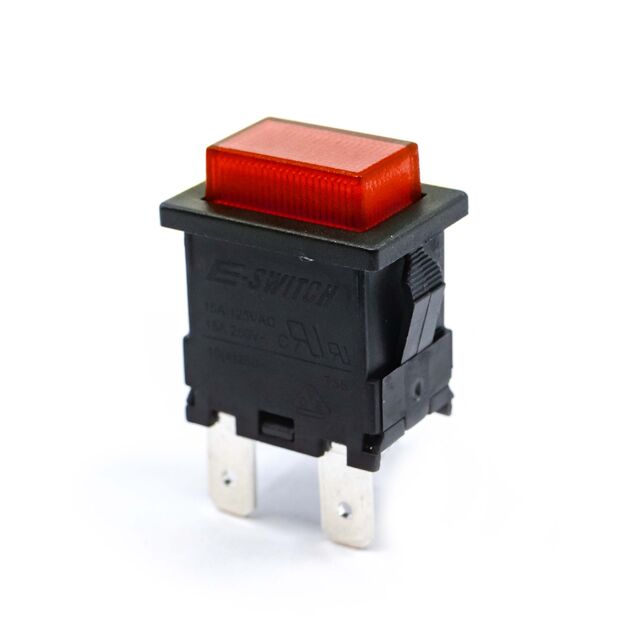

E-Switch PB1973BBLKRILEF0	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Standard	19.2 mm	13 mm	55 °C	-10 °C	Red	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular

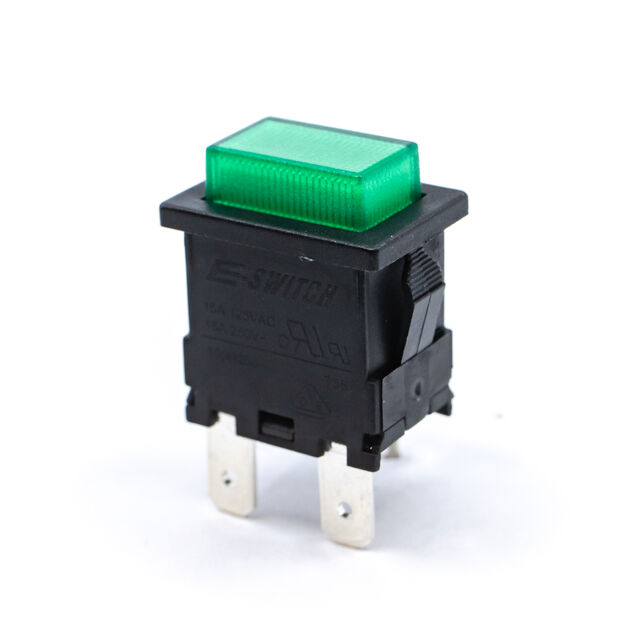

E-Switch PB1973BBLKGILEF0	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Standard	19.2 mm	13 mm	55 °C	-10 °C	Green	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular
E-Switch PB1973GBLKRILEF4	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	DPST	On-Off	Illuminated Standard	19.2 mm	13 mm	55 °C	-10 °C	Red	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular	24 V	Incandescent Red
E-Switch PB1973DBLKRILEF2	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Illuminated Standard	19.2 mm	13 mm	55 °C	-10 °C	Red	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular	250 VAC	Neon Red
E-Switch PB1973DBLKGILEF4	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Illuminated Standard	19.2 mm	13 mm	55 °C	-10 °C	Green	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular	24 V	Green Incandescent

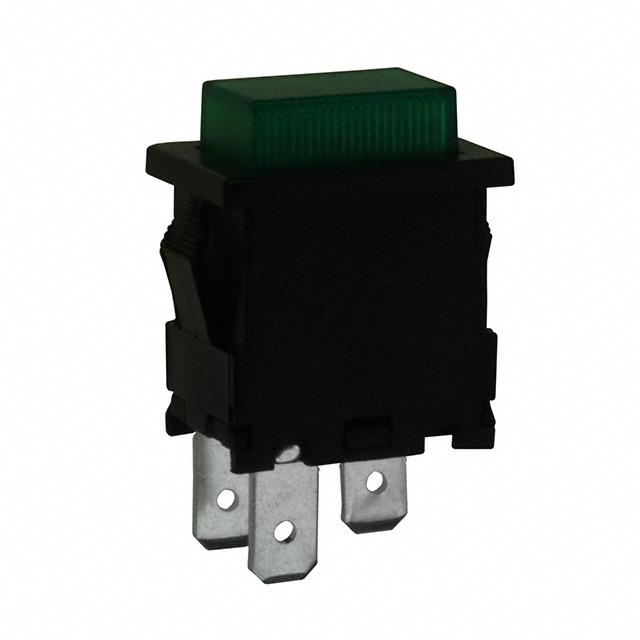

E-Switch PB1973DBLKGILEF3	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Illuminated Standard	19.2 mm	13 mm	55 °C	-10 °C	Green	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular	12 VDC	Green Incandescent

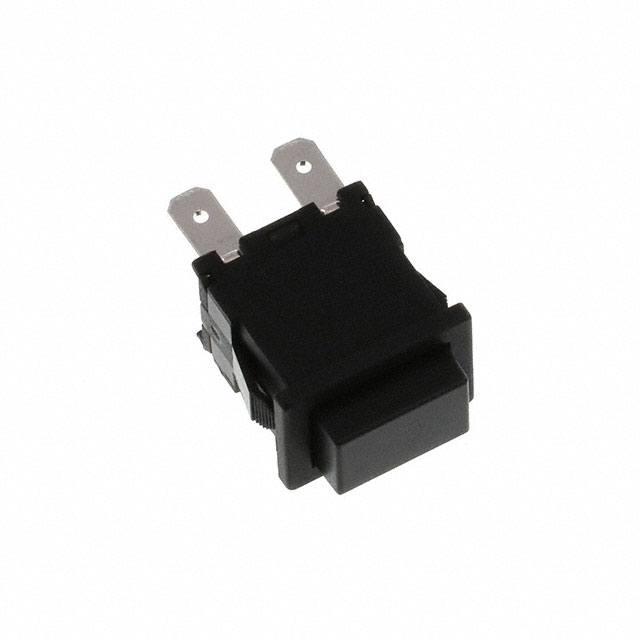

E-Switch PB1973BBLKBLKEF0	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST-NO	Off-Mom	Standard	19.2 mm	13 mm	55 °C	-10 °C	Black	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular

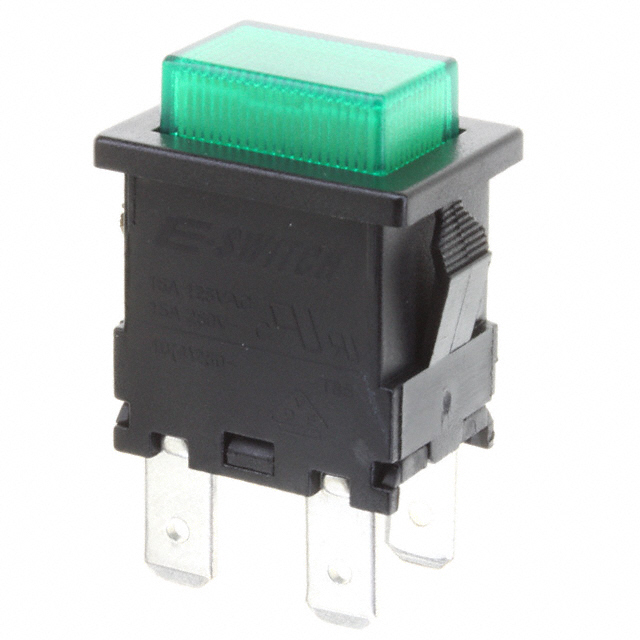

E-Switch PB1973CBLKGILEF3	30000 Steps	10 A 15 A	10000 Cycles	125 VDC	SPST	On-Off	Illuminated Standard	19.2 mm	13 mm	55 °C	-10 °C	Green	Quick Connect	No Marking	250 V	Panel Mount Snap-In	Button Rectangular	12 VDC	Green Incandescent
E-Switch PB1973ABLKBLKEF0GOLDCONT		15 A		125 VDC	SPST	On-Off	Standard	19.2 mm	13 mm	55 °C	-10 °C	Black	Quick Connect		125 V	Panel Mount Snap-In	Button Rectangular
