TB67Z800 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
IC HALF BRIDGE DRIVER 3A 36VQFN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output / Channel | Package / Case | Fault Protection | Output Configuration | Mounting Type | Applications | Load Type | Voltage - Load [Min] | Voltage - Load [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

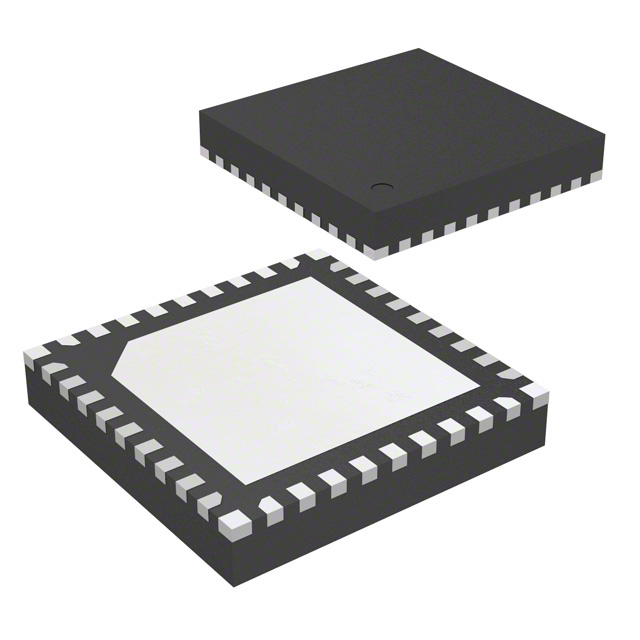

 Toshiba Semiconductor and Storage | -40 °C | 105 °C | Logic | 22 V | 5.5 V | 3 A | 36-VFQFN Exposed Pad | Current Limiting Over Temperature Shoot-Through UVLO | Half Bridge (3) | Surface Mount | General Purpose | Capacitive Inductive | 5.5 V | 22 V | 36-VQFN (5x5) |
