AWH 30A Series

Catalog

CONN HEADER R/A 30POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Contact Shape	Insulation Color	Features	Connector Type	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Style	Termination	Number of Rows [custom]	Mounting Type	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Insulation Height [z]

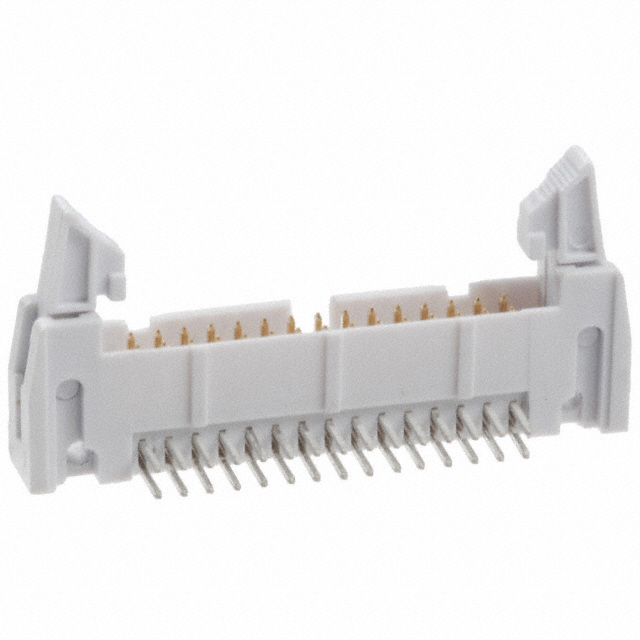

Assmann WSW Components AWH30A-0222-T-R	0.1 "	2.54 mm	Flash	Shrouded - 4 Wall	0.1 in	2.54 mm	30	Male Pin	3.81 mm	0.15 in	-40 C	105 ░C	Brass	Latch Lock/Eject Hooks	Square	Gray	Keying Slot	Header	All	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Cable/Wire	Solder	2	Right Angle Through Hole	17 mm	0.669 in	UL94 V-0	Tin	Gold
Assmann WSW Components AWH 30A-0202-T	0.1 "	2.54 mm	Flash	Shrouded - 4 Wall	0.1 in	2.54 mm	30	Male Pin	3.81 mm	0.15 in	-40 C	105 ░C	Brass	Push-Pull	Square	Gray	Keying Slot	Header	All	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Cable/Wire	Solder	2	Right Angle Through Hole	8.3 mm		UL94 V-0	Tin	Gold	0.327 "
