Raspberry Pi Compute Module 3+ Series

Catalog

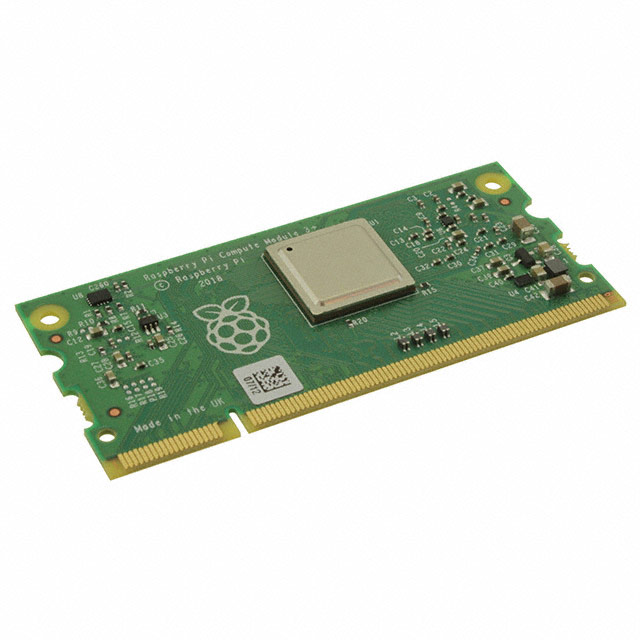

SYSTEM-ON-MODULES - SOM COMPUTE MODULE CM3+/32GB

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	USB	Number of Cores [custom]	Speed	Storage Interface	Video Outputs	Digital I/O Lines	Expansion Site/Bus	RAM Capacity/Installed	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor
Raspberry Pi SC0148	1.22 in	67.6 mm	31 mm	2.661 in	USB 2.0 (1)	1	1.2 GHz	eMMC/SD	CSI DPI DSI HDMI	48	I2C NAND SPI UART	1 GB	-25 °C	80 °C	Broadcom BCM2837 ARM Cortex-A53
Raspberry Pi SC0147	1.22 in	67.6 mm	31 mm	2.661 in	USB 2.0 (1)	1	1.2 GHz	eMMC/SD	CSI DPI DSI HDMI	48	I2C NAND SPI UART	1 GB	-25 °C	80 °C	Broadcom BCM2837 ARM Cortex-A53
Raspberry Pi SC0146	1.22 in	67.6 mm	31 mm	2.661 in	USB 2.0 (1)	1	1.2 GHz	eMMC/SD	CSI DPI DSI HDMI	48	I2C NAND SPI UART	1 GB	-25 °C	80 °C	Broadcom BCM2837 ARM Cortex-A53
