DZW12000 Series

Catalog

INTERFACE

Part	Technology	Speed	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage @ Vr
Micro Commercial Components DZW12000-04-BP	Standard	Standard Recovery >500ns	200 mA	-40 °C	170 °C	400 V	990 mV	DO-200AC K-PUK	12000 A	Clamp On

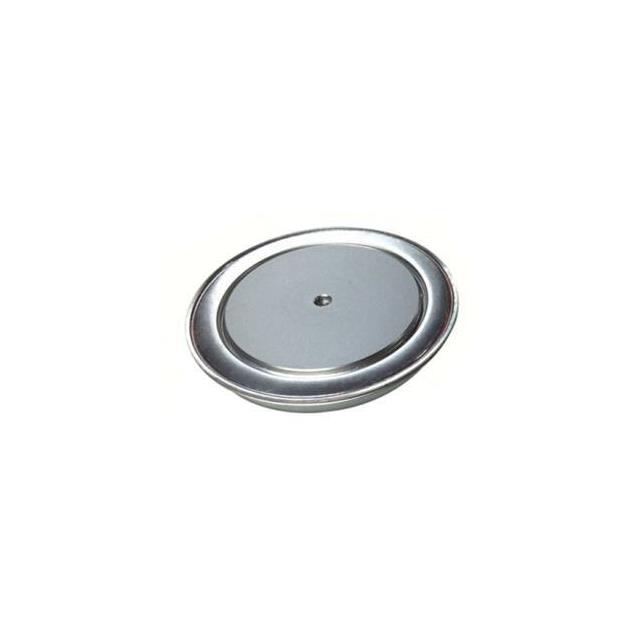

Micro Commercial Components DZW12000-02-BP	Standard	Standard Recovery >500ns	200 mA	-40 °C	170 °C	200 V	990 mV	DO-200AC K-PUK	12000 A	Clamp On	15 mA
