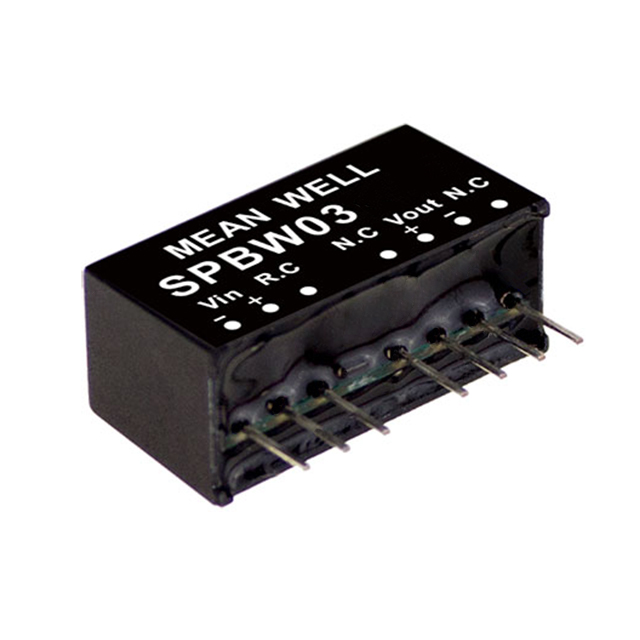

SPBW03 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 12V 3W
| Part | Applications | Features | Number of Outputs | Current - Output (Max) [Max] | Control Features | Type | Efficiency | Power (Watts) | Package / Case | Mounting Type | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | OCP Remote On/Off SCP UVLO | 1 | 250 mA | Active High Enable | Isolated Module | 85 % | 3 W | 8-SIP Module 7 Leads | Through Hole | 12 V | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | -40 °C | 85 °C | 1.5 kV | 75 V | 18 V |
MEAN WELL USA Inc. | ITE (Commercial) | OCP Remote On/Off SCP UVLO | 1 | 600 mA | Active High Enable | Isolated Module | 3 W | 8-SIP Module 7 Leads | Through Hole | 5 V | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | -40 °C | 85 °C | 1.5 kV | 75 V | 18 V |
