Ils0 Series Series

Integrated LED Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Integrated LED Tact Switch

Part	Operating Force	Actuator Type	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Orientation	Illumination Type, Color	Mounting Type	Termination Style	Outline [y]	Outline [x]	Illumination	Switch Travel	Switch Function	Circuit	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Height off PCB, Vertical
Littelfuse/Commercial Vehicle Products ILS TC250 10	0.25 kgf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	2.6 VDC	Top Actuated	LED Red	Through Hole	PC Pin	6.8 mm	7.2 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles	7 mm
Littelfuse/Commercial Vehicle Products ILS TC250 40	0.25 kgf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.2 VDC	Top Actuated	Blue LED	Through Hole	PC Pin	6.8 mm	7.2 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles	7 mm
Littelfuse/Commercial Vehicle Products ILS TA180 50	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.6 VDC	Top Actuated	LED White	Through Hole	PC Pin	6.1 mm	6.7 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles	7.2 mm
Littelfuse/Commercial Vehicle Products ILS TB250 50	0.25 kgf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.6 VDC	Top Actuated	LED White	Through Hole	PC Pin	6 mm	6 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles		9 mm
Littelfuse/Commercial Vehicle Products ILS TB180 50	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.6 VDC	Top Actuated	LED White	Through Hole	PC Pin	6 mm	6 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles		9 mm

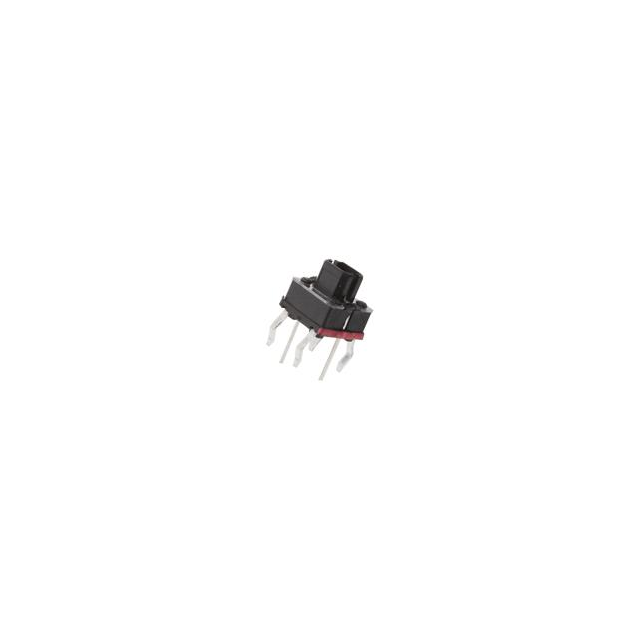

Littelfuse/Commercial Vehicle Products ILS TA180 40	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.2 VDC	Top Actuated	Blue LED	Through Hole	PC Pin	6.1 mm	6.7 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles	7.2 mm
Littelfuse/Commercial Vehicle Products ILS TB250 10	0.25 kgf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	2.6 VDC	Top Actuated	LED Red	Through Hole	PC Pin	6 mm	6 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles		9 mm

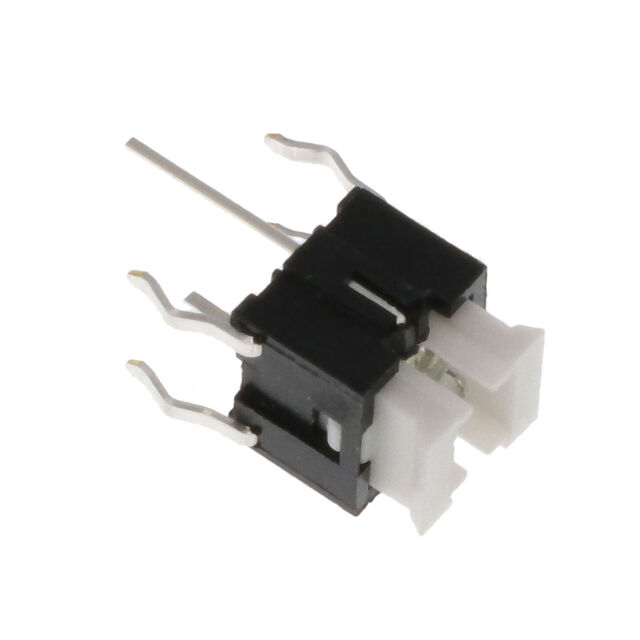

Littelfuse/Commercial Vehicle Products ILS TA180 30	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	2.3 VDC	Top Actuated	Green LED Yellow	Through Hole	PC Pin	6.1 mm	6.7 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles	7.2 mm
Littelfuse/Commercial Vehicle Products ILS TB180 60	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.4 VDC	Top Actuated	Green LED	Through Hole	PC Pin	6 mm	6 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles		9 mm
Littelfuse/Commercial Vehicle Products ILS TB180 40	180 gf	Plunger for Cap	0.1 A 30 VDC	85 °C	-40 °C	3.2 VDC	Top Actuated	Blue LED	Through Hole	PC Pin	6 mm	6 mm	Illuminated	0.25 mm	Off-Mom	SPST-NO	100000 Cycles		9 mm

Catalog

Integrated LED Tact Switch

Key Features

• Red, yellow green, blue, white and green LED

• IP40

• 6.1 x 6.7 x 7.2 mm - 6.0 x 6.0 x 8.8 mm and 7.2 x 6.8 x 7.0 mm form factor

• THT versions

Description

The ILS series is a new range of illuminated tact switch with different height and integrated LED in THT soldering leads.
