LTM2810 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

7.5KVRMSSPI/DIGITAL OR I2C ΜMODULE ISOLATOR WITH TRANSFORMER DRIVER

Part	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Technology	Number of Channels [custom]	Voltage - Isolation	Rise / Fall Time (Typ)	Data Rate	Propagation Delay tpLH / tpHL (Max) [Max]	Channel Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Pulse Width Distortion (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Type	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]

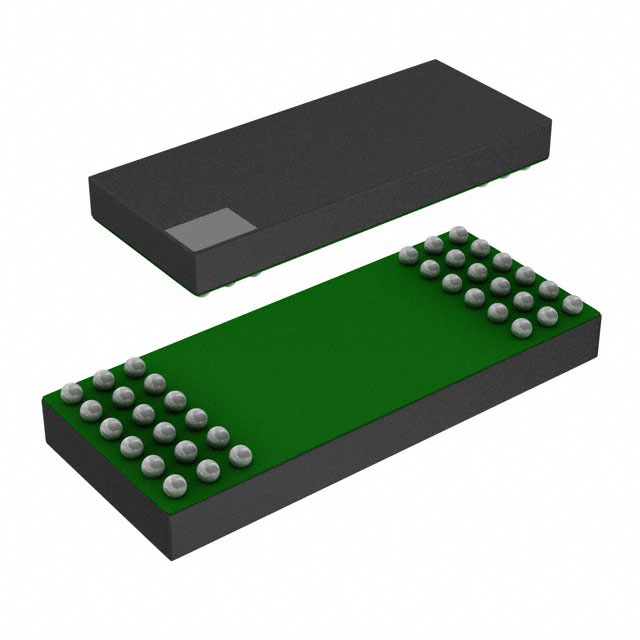

Analog Devices Inc./Maxim Integrated LTM2810CY-S#PBF	22	6.25	36-BGA	70 °C	0 °C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	10 MHz	100 ns	Unidirectional	1.62 V	5.5 V	Surface Mount	50 ns	3	3	SPI	50 kV/çs
Analog Devices Inc./Maxim Integrated LTM2810IY-I#PBF	22	6.25	36-BGA	85 °C	-40 C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	400 kHz		Unidirectional	3 V	5.5 V	Surface Mount	50 ns	3	3	I2C	50 kV/çs	500 ns	500 ns
Analog Devices Inc./Maxim Integrated LTM2810HY-I#PBF	22	6.25	36-BGA	125 °C	-40 C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	400 kHz		Unidirectional	3 V	5.5 V	Surface Mount	50 ns	3	3	I2C	50 kV/çs	500 ns	500 ns
Analog Devices Inc./Maxim Integrated LTM2810IY-S#PBF	22	6.25	36-BGA	85 °C	-40 C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	10 MHz	100 ns	Unidirectional	1.62 V	5.5 V	Surface Mount	50 ns	3	3	SPI	50 kV/çs
Analog Devices Inc./Maxim Integrated LTM2810CY-I#PBF	22	6.25	36-BGA	70 °C	0 °C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	400 kHz		Unidirectional	3 V	5.5 V	Surface Mount	50 ns	3	3	I2C	50 kV/çs	500 ns	500 ns
Analog Devices Inc./Maxim Integrated LTM2810HY-S#PBF	22	6.25	36-BGA	125 °C	-40 C	36-BGA Module	Magnetic Coupling	6	7500 Vrms	250 ns 350 ns	10 MHz	100 ns	Unidirectional	1.62 V	5.5 V	Surface Mount	50 ns	3	3	SPI	50 kV/çs
