9116P Series
Manufacturer: Belden Inc.
Beta
⌘K

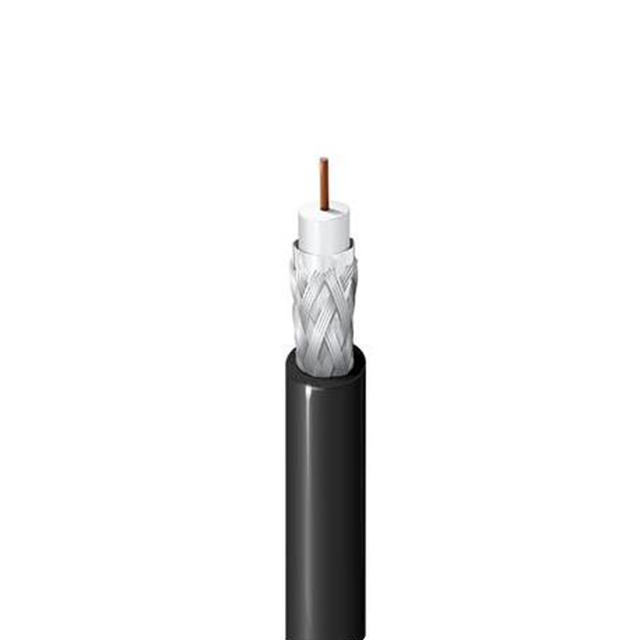

COAX 75 OHM RG6 18AWG PLENUM
| Part | Conductor Material | Shield Coverage [custom] | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | VoP, Velocity of Propagation | Wire Gauge | Cable Type | Conductor Strand | Shield Type | Cable Group | Length [x] | Length [x] | Impedance | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Coated Steel | 60 % 100 % | Aluminum | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | 83 | 18 AWG | Coaxial - Plenum | Solid | Braid Foil | RG-6 | 304.8 m | 1000 ft | 75 Ohms | Low Smoke Poly-Vinyl Chloride (LSPVC) | Black | 0.235 " | 5.97 mm |
Belden Inc. | Copper Coated Steel | 60 % 100 % | Aluminum | 4.32 mm | 0.17 in | Foam Fluorinated Ethylene Propylene (FFEP) | 83 | 18 AWG | Coaxial - Plenum | Solid | Braid Foil | RG-6 | 304.8 m | 1000 ft | 75 Ohms | Low Smoke Poly-Vinyl Chloride (LSPVC) | Natural | 0.235 " | 5.97 mm |
