AMPLA1306S Series

Catalog

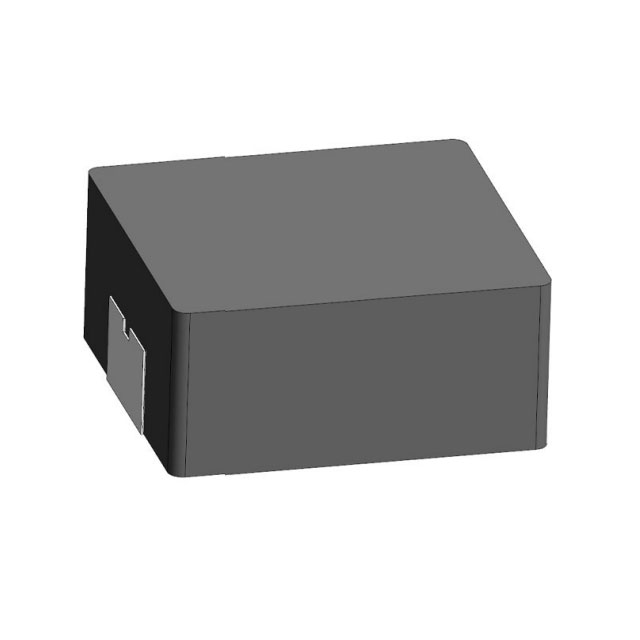

POWER INDUCTOR (SMD), 7 ΜH, 11.2 A, SHIELDED, 17.7 A, AMPLA1306S SERIES

Part	DC Resistance (DCR) [Max]	Current Rating (Amps)	Shielding	Mounting Type	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Inductance	Material - Core	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	DC Resistance (DCR)
Abracon LLC AMPLA1306S-7R0MT	12.3 mOhm	11.2 A	Shielded	Surface Mount	17.7 A	-55 C	125 °C	20 %	Nonstandard	7 µH	Carbonyl Powder	Molded	6.5 mm	0.256 in	12.5 mm	13.5 mm	0.531 in	0.492 "	100 kHz
Abracon LLC AMPLA1306S-1R0MT		30 A	Shielded	Surface Mount	48 A	-55 C	125 °C	20 %	Nonstandard	1 µH	Carbonyl Powder	Molded	6.5 mm	0.256 in	12.5 mm	13.5 mm	0.531 in	0.492 "	100 kHz	2.3 mOhm
Abracon LLC AMPLA1306S-R22MT	0.6 mOhm	53 A	Shielded	Surface Mount	112 A	-55 C	125 °C	20 %	Nonstandard	220 nH	Carbonyl Powder	Molded	6.5 mm	0.256 in	12.5 mm	13.5 mm	0.531 in	0.492 "	100 kHz
Abracon LLC AMPLA1306S-R15MT	0.6 mOhm	55 A	Shielded	Surface Mount	118 A	-55 C	125 °C	20 %	Nonstandard	150 nH	Carbonyl Powder	Molded	6.5 mm	0.256 in	12.5 mm	13.5 mm	0.531 in	0.492 "	100 kHz
