EPM7512 Series

Manufacturer: Altera

Catalog

IC CPLD 512MC 10NS 256FBGA

Part	Programmable Type	Supplier Device Package	Delay Time tpd(1) Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Number of I/O	Number of Macrocells	Number of Logic Elements/Blocks	Number of Gates	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Delay Time tpd(1) Max

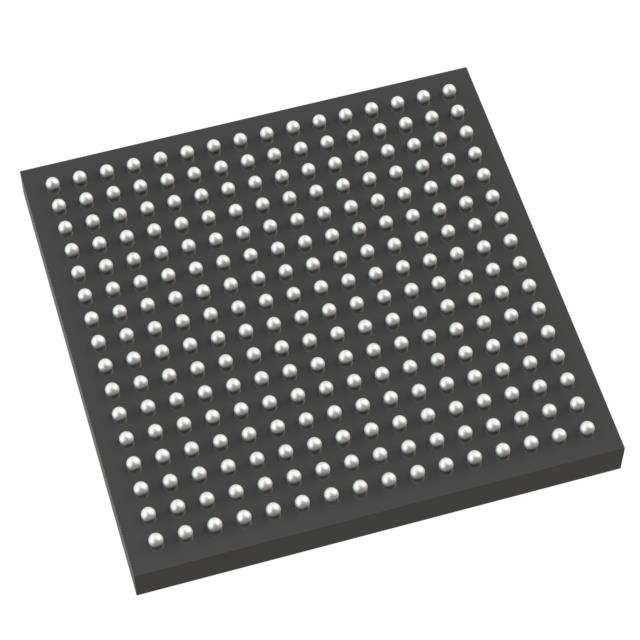

Altera EPM7512AEBI256-10	In System Programmable	256-FBGA (17x17)	10 ns	85 C	-40 ¯C	256-BGA	Surface Mount	212	512	32	10000	3 V	3.6 V

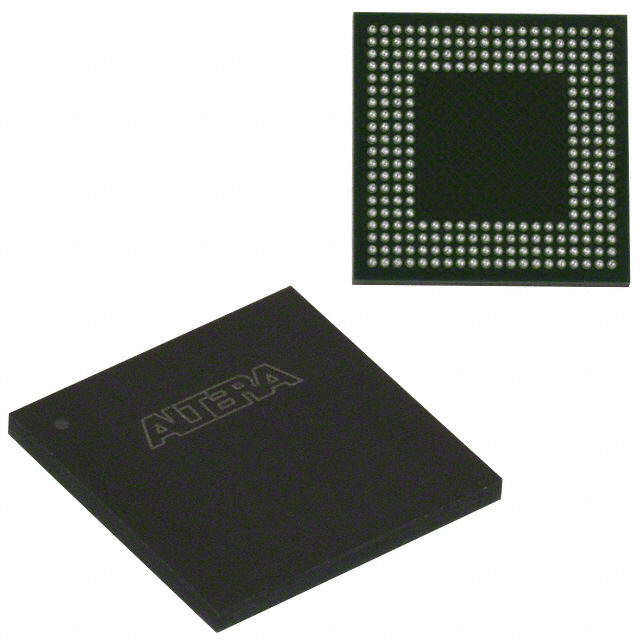

Altera EPM7512BBC256-10	In System Programmable	256-BGA	10 ns	70 °C	0 °C	256-LBGA	Surface Mount	212	512	32	10000	2.375 V	2.625 V	27	27

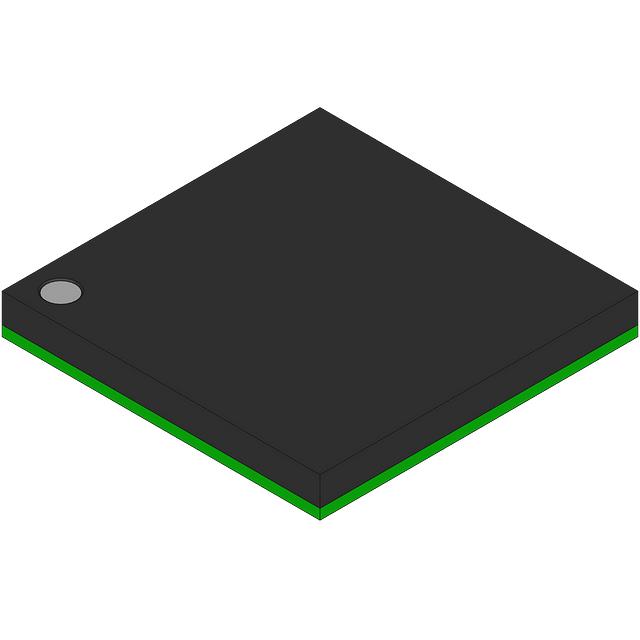

Altera EPM7512BUC169-7	In System Programmable	169-UBGA (11x11)	7.5 ns	70 °C	0 °C	169-LFBGA	Surface Mount	141	512	32	10000	2.375 V	2.625 V
Altera EPM7512BBC256-7	In System Programmable	256-BGA	7.5 ns	70 °C	0 °C	256-LBGA	Surface Mount	212	512	32	10000	2.375 V	2.625 V	27	27
Altera EPM7512AEFI256-7	In System Programmable	256-FBGA (17x17)	7.5 ns	85 C	-40 ¯C	256-BGA	Surface Mount	212	512	32	10000	3 V	3.6 V
Altera EPM7512AEFC256-10N	In System Programmable	256-FBGA (17x17)	10 ns	70 °C	0 °C	256-BGA	Surface Mount	212	512	32	10000	3 V	3.6 V
Altera EPM7512BQC208-5	In System Programmable	208-PQFP (28x28)		70 °C	0 °C	208-BFQFP	Surface Mount	176	512	32	10000	2.375 V	2.625 V			5.5 ns
Altera EPM7512BFC256-10	In System Programmable	256-FBGA (17x17)	10 ns	70 °C	0 °C	256-BGA	Surface Mount	212	512	32	10000	2.375 V	2.625 V
Altera EPM7512AEQC208-12N	In System Programmable	208-PQFP (28x28)	12 ns	70 °C	0 °C	208-BFQFP	Surface Mount	176	512	32	10000	3 V	3.6 V
Altera EPM7512BTC144-5	In System Programmable	144-TQFP (20x20)		70 °C	0 °C	144-LQFP	Surface Mount	120	512	32	10000	2.375 V	2.625 V			5.5 ns
