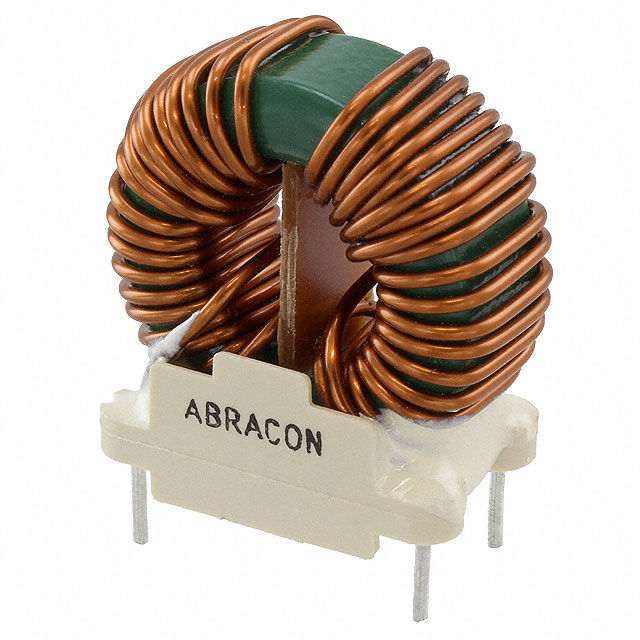

ALFT Series

Catalog

COMMON MODE CHOKES / FILTERS CMC 6.000 A 4.50 MOHM

Part	Filter Type	Current Rating (Max) [Max]	Mounting Type	Inductance @ Frequency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max)	Voltage Rating - DC
Abracon LLC ALFT-04-10	Signal Line	6 A	Through Hole	1 kHz 120 µH	Vertical 4 PC Pin	0.642 "	30.48 mm	16.3 mm	1.2 "	1.251 in	31.8 mm	4.5 mOhm	2	85 °C	-25 °C
Abracon LLC ALFT-03A-14	Power Line	3 A	Through Hole	1 kHz 600 µH	Vertical 4 PC Pin	18 mm			23.9 mm	0.85 in	21.6 mm		2	85 °C	-25 °C	0.941 in	0.709 in	380 mOhm	250 V
Abracon LLC ALFT-04-2	Signal Line	6 A	Through Hole	350 µH	Vertical 4 PC Pin	18 mm			34 mm	1.251 in	31.8 mm		2	85 °C	-25 °C	1.339 in	0.709 in
