9058A Series
Manufacturer: ALPHA WIRE
Beta
⌘K

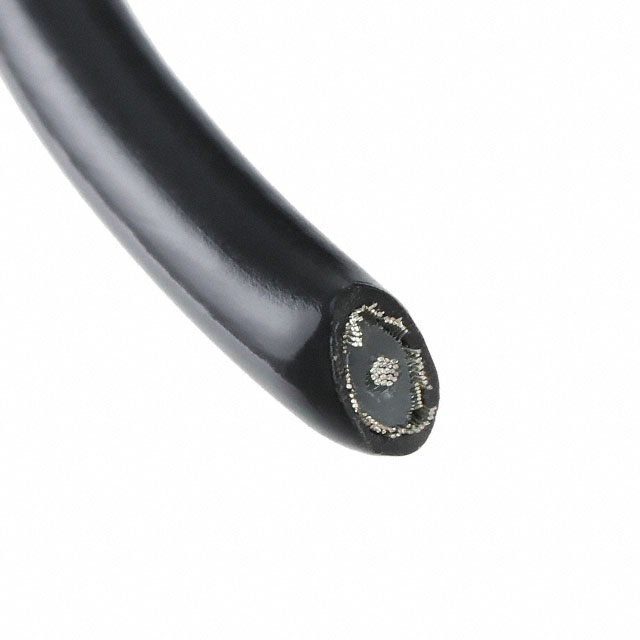

CABLE COAXIAL RG58A 20AWG 1000'
| Part | Shield Material | Shield Coverage | Dielectric Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Type | Cable Group | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 95 % | Solid Polyethylene (PE) | 2.95 mm | 0.116 in | Copper Tinned | 66 | -20 ░C | 60 °C | 304.8 m | 1000 ft | 20 AWG | 0.195 " | 4.95 mm | Braid | Coaxial | RG-58A | Black | Poly-Vinyl Chloride (PVC) | 19 | 0.0071 in | 50 Ohms |
ALPHA WIRE | Copper Tinned | 95 % | Solid Polyethylene (PE) | 2.95 mm | 0.116 in | Copper Tinned | 66 | -20 ░C | 60 °C | 152.4 m | 500 ft | 20 AWG | 0.195 " | 4.95 mm | Braid | Coaxial | RG-58A | Black | Poly-Vinyl Chloride (PVC) | 19 | 0.0071 in | 50 Ohms |
