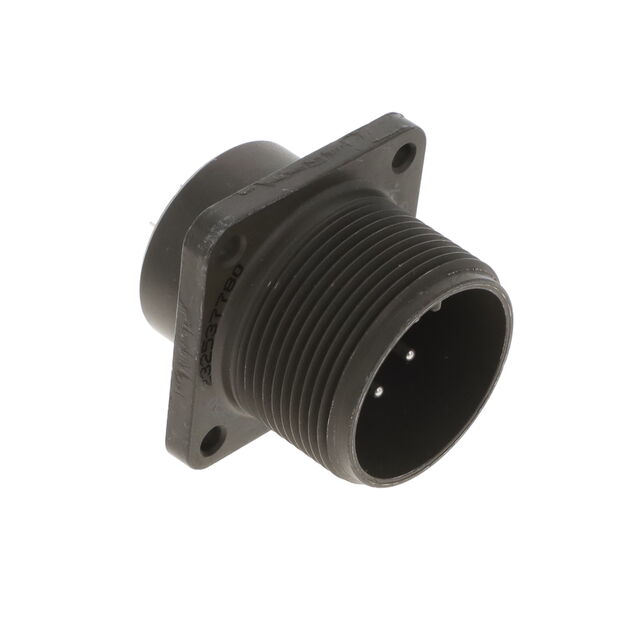

MS3102R18 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
MIL-5015 MS/AC THREADED RECEPT
| Part | Mounting Feature | Orientation | Mounting Type | Primary Material | Shell Size - Insert Length | Shell Size - Insert Width | Grade | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Connector Type | Shell Finish | Applications | Contact Finish - Mating | Qualification | Color | Fastening Type | Shielding | Contact Material | Insert Material | Termination | Current Rating | Ingress Protection | Cable Opening | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Flange | N (Normal) | Panel Mount | Metal | 18 mm | 12 mm | Military | 6 | 125 °C | -55 °C | Aluminum Alloy | Male Pins Receptacle | Cadmium Olive Drab Chromate | Marine Military | Silver | MIL-DTL-5015 | Olive Drab | Threaded | Unshielded | Copper Alloy | Neoprene | Solder Cup | 13 A | Environment Resistant | |||
 Amphenol Aerospace Operations | Flange | N (Normal) | Panel Mount | Metal | Military | 10 | 125 °C | -55 °C | Aluminum Alloy | Female Sockets Receptacle | Cadmium Olive Drab Chromate | Marine Military | Silver | MIL-DTL-5015 | Olive Drab | Threaded | Unshielded | Copper Alloy | Neoprene | Solder Cup | Environment Resistant | 1 in | 24 | 18 | |||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | Flange | W | Panel Mount | Metal | 18 mm | 4 mm | Military | 4 | 125 °C | -55 °C | Aluminum Alloy | Male Pins Receptacle | Cadmium Olive Drab Chromate | Marine Military | Silver | MIL-DTL-5015 | Olive Drab | Threaded | Unshielded | Copper Alloy | Neoprene | Solder Cup | Environment Resistant | 1 in | |||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||
Amphenol Aerospace Operations | Flange | N (Normal) | Panel Mount | Metal | 18 mm | 8 mm | Military | 8 | 125 °C | -55 °C | Aluminum Alloy | Male Pins Receptacle | Cadmium Olive Drab Chromate | Marine Military | Silver | MIL-DTL-5015 | Olive Drab | Threaded | Unshielded | Copper Alloy | Neoprene | Solder Cup | Environment Resistant | 1 in | |||
Amphenol Aerospace Operations | Flange | N (Normal) | Panel Mount | Metal | 18 mm | 4 mm | Military | 4 | 125 °C | -55 °C | Aluminum Alloy | Male Pins Receptacle | Cadmium Olive Drab Chromate | Marine Military | Silver | MIL-DTL-5015 | Olive Drab | Threaded | Unshielded | Copper Alloy | Neoprene | Solder Cup | Environment Resistant | 1 in |
