Ulta Low Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 50V 2.4PF C0G 0805 . 25PF TOL

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Voltage - Rated	Capacitance	Temperature Coefficient	Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case

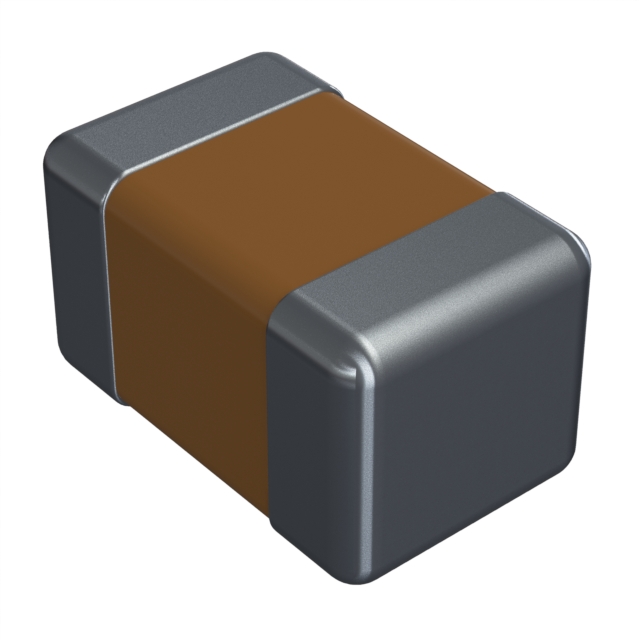

KYOCERA AVX 08055U2R4CAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	50 VDC	2.4 pF	C0G NP0	0.25 pF	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 08055U5R6BAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	50 VDC	5.6 pF	C0G NP0	0.1 pF	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF

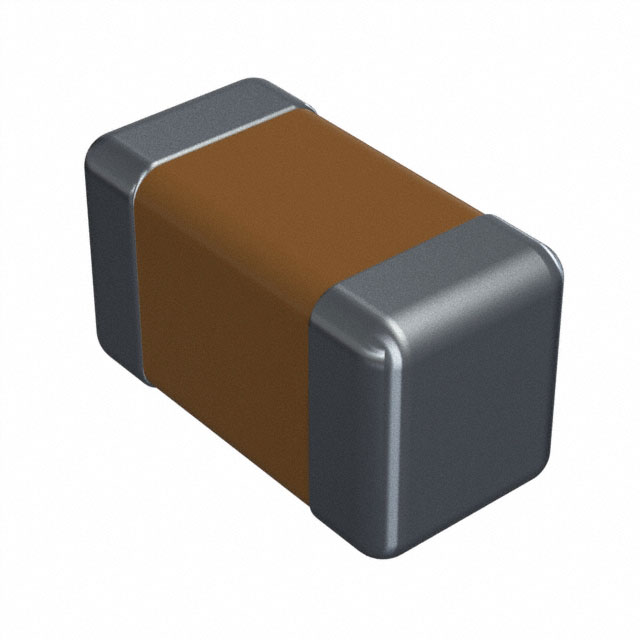

KYOCERA AVX 06033U101JAT2A	MLCC Surface Mount	-55 C	125 °C	0.91 mm	0.036 in	Ultra Low ESR	25 VDC	100 pF	C0G NP0	5 %	0603		1.52 mm	High Frequency Microwave RF	0.03 "	0.76 mm	0.06 in	1608 Metric
KYOCERA AVX 06033U101FAT2A	MLCC Surface Mount	-55 C	125 °C	0.91 mm	0.036 in	Ultra Low ESR	25 VDC	100 pF	C0G NP0	1 %	0603		1.52 mm	High Frequency Microwave RF	0.03 "	0.76 mm	0.06 in	1608 Metric
KYOCERA AVX 08052U2R2CAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	200 VDC	2.2 pF	C0G NP0	0.25 pF	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 08052U270JAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	200 VDC	27 pF	C0G NP0	5 %	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 08052U3R9CAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	200 VDC	3.9 pF	C0G NP0	0.25 pF	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 08055U120JAT2A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	50 VDC	12 pF	C0G NP0	5 %	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 08055U100JAT4A	MLCC Surface Mount	-55 C	125 °C	1.15 mm	0.045 in	Ultra Low ESR	50 VDC	10 pF	C0G NP0	5 %	0805	0.049 " 1.25 mm	0.079 in 2.01 mm	High Frequency Microwave RF
KYOCERA AVX 12105U9R1BAT2A	MLCC Surface Mount	-55 C	125 °C	1.4 mm	0.055 in	Ultra Low ESR	50 VDC	9.1 pF	C0G NP0	0.1 pF	1210	2.5 mm	3.2 mm	High Frequency Microwave RF	0.098 in		0.126 "	3225 Metric
