Dm0 Series Series

Miniature 2 Pole Power Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Miniature 2 Pole Power Rocker Switch

Part	Approval Agency	Electrical Life	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Voltage Rating - AC	Termination Style	Actuator Marking	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Switch Function	Mounting Type	Features	Illumination Voltage (Nominal)	Illumination Type, Color
Littelfuse/Commercial Vehicle Products DM62J12S205HQ	cULus	10000 Cycles	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	O I	10 A	DPST	Black	On-Off	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products DM62J12B205PQ	cULus	10000 Cycles	Concave (Curved)	19.2 mm		27.13 mm	125 V	Quick Connect - 0.110" (2.8mm)	O -	10 A	DPST	Black	On-Off	Panel Mount Snap-In	Guard

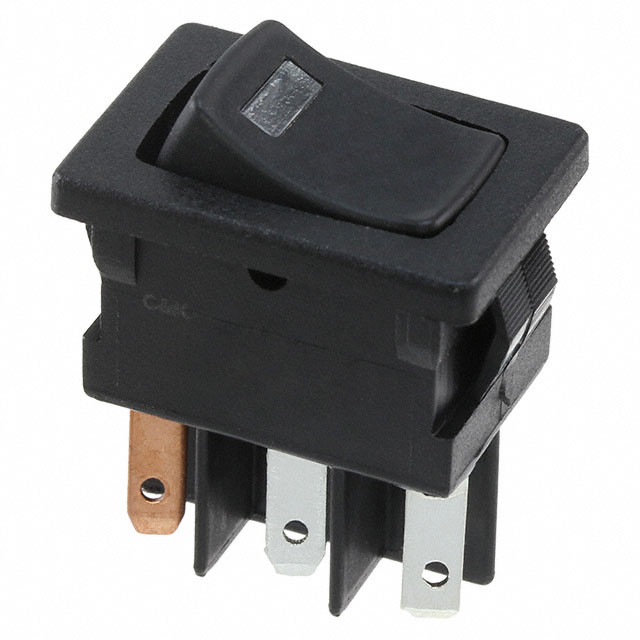

Littelfuse/Commercial Vehicle Products DM14J72S205Q3	cULus	10000 Cycles	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	No Marking	3 A	SPST	Black	On-Off	Panel Mount Snap-In	Positive Detent	2.1 VDC	LED Red
Littelfuse/Commercial Vehicle Products DM22J12S205Q	cULus	10000 Cycles	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	No Marking	3 A	DPST	Black	On-Off	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products DM62J12S205PQ	cULus	10000 Cycles	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	O -	10 A	DPST	Black	On-Off	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products DM61J12B205Q	cULus	10000 Cycles	Concave (Curved)	19.2 mm		27.13 mm	125 V	Quick Connect - 0.110" (2.8mm)	No Marking	10 A	DPDT	Black	On-On	Panel Mount Snap-In	Guard
Littelfuse/Commercial Vehicle Products DM62J12B205DQ	cULus	10000 Cycles	Concave (Curved)	19.2 mm		27.13 mm	125 V	Quick Connect - 0.110" (2.8mm)	ON OFF Vertical	10 A	DPST	Black	On-Off	Panel Mount Snap-In	Guard
Littelfuse/Commercial Vehicle Products DM22J12S205DQ	cULus	10000 Cycles	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	ON OFF Vertical	3 A	DPST	Black	On-Off	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products DM14J72S205Q6	cULus	10000 Cycles	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	No Marking	3 A	SPST	Black	On-Off	Panel Mount Snap-In	Positive Detent	2.1 VDC	Green LED
Littelfuse/Commercial Vehicle Products DM62J11S205PQ	cULus	10000 Cycles	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	125 V	Quick Connect - 0.110" (2.8mm)	O -	10 A	DPST	White	On-Off	Panel Mount Snap-In

Catalog

Miniature 2 Pole Power Rocker Switch

Key Features

• Quick connect terminals

• Recessed bracket available—prevents accidental actuation

• Double pole in miniature size

Description

The DM series miniature 2 pole power rocker switch from C&K is commonly found in computers, appliances and electric tools – applications where there is the need for a quick connection and to be sure a device isn’t turned on accidentally. DM switches feature quick connect terminals, optional recessed brackets (to prevent accidental actuation) and are double pole in miniature size.
