XZMDKDGCBD56 Series
Manufacturer: SunLED
Beta
⌘K

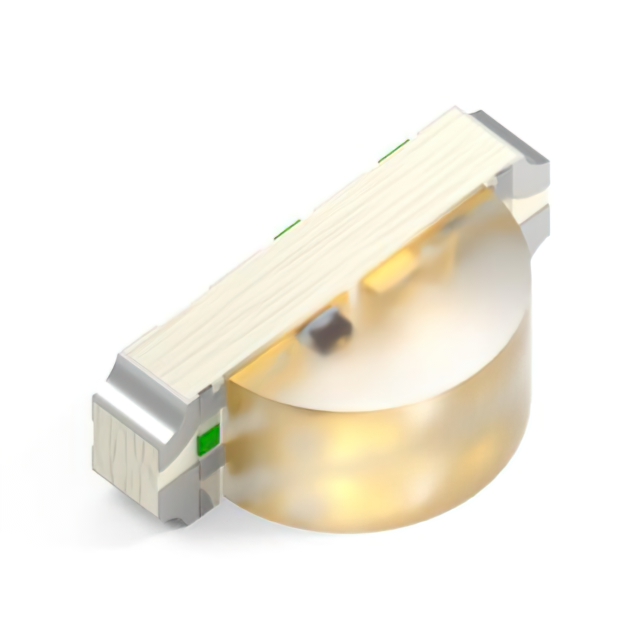

LED RGB CLEAR CHIP SMD R/A
| Part | Lens Style | Viewing Angle | Lens Transparency | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Dominant | Package / Case | Lens Color | Lens Size [y] | Lens Size [x] | Mounting Type | Current - Test | Height (Max) [z] | Color | Supplier Device Package | Configuration | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Rectangle with Domed Top | 120 ° | Clear | 3 mm | 1.5 mm | 465 nm 525 nm 630 nm | 4-SMD No Lead | Colorless | 1 mm | 2 mm | Right Angle Surface Mount | 20mA Blue 20mA Green 20mA Red | 1 mm | Blue Green Red | Chip LED | Common Anode | 645 nm | 515 nm | 460 nm | 69 mcd | 297 mcd | 79 mcd |
