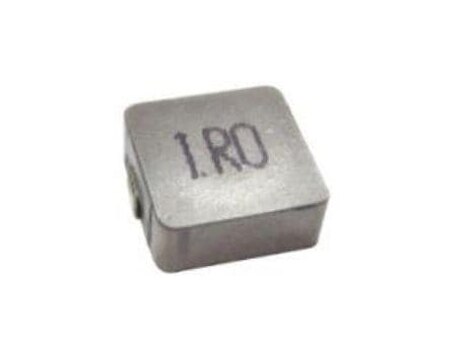

AMRU Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPEMOLDING PROCESSING & FOR ULTRA HIGH CURRENT
| Part | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Material - Core | Mounting Type | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) [Max] | Ratings | Inductance | Tolerance | Inductance Frequency - Test | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 5 A | 6.5 mm | 0.256 in | Nonstandard | Metal | Surface Mount | 6 A | Shielded | 55 mOhm | AEC-Q200 | 33 µH | 20 % | 100 kHz | Drum Core Wirewound | 13.8 mm | 0.543 " | 0.504 in | 12.8 mm | 125 °C | -40 C | ||
 Pulse Electronics | 3 A | Nonstandard | Metal | Surface Mount | 3.5 A | Shielded | 165 mOhm | AEC-Q200 | 47 µH | 20 % | 100 kHz | Drum Core Wirewound | 11.6 mm | 0.457 in | 0.402 in | 10.2 mm | 125 °C | -40 C | 4 mm | 0.157 in |
