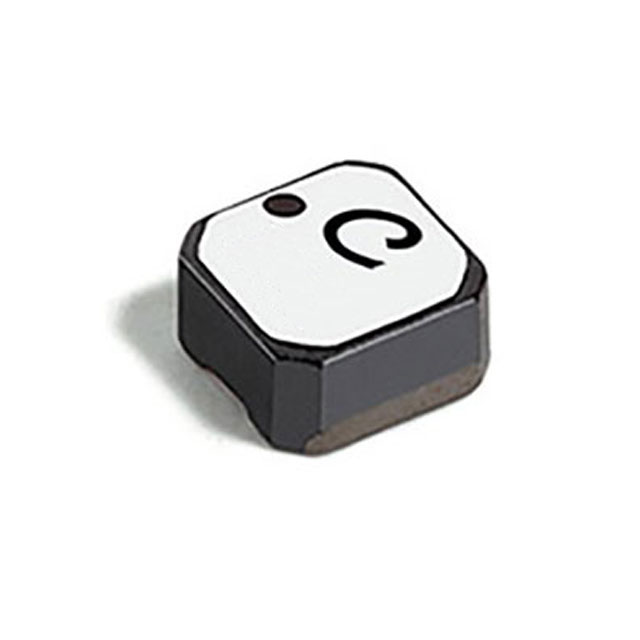

LPS3015 Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 15UH SHLD 20% 700MOHMS AECQ2
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Material - Core | Package / Case | Inductance | Mounting Type | Frequency - Self Resonant | Shielding | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | 0.059 " | 1.5 mm | 590 mA | 100 kHz | 20 % | 2.95 mm | 0.116 in | 2.95 mm | 0.116 in | AEC-Q200 | Ferrite | Nonstandard | 15 µH | Surface Mount | 35 MHz | Shielded | 620 mA | 125 °C | -40 C | 700 mOhm |
