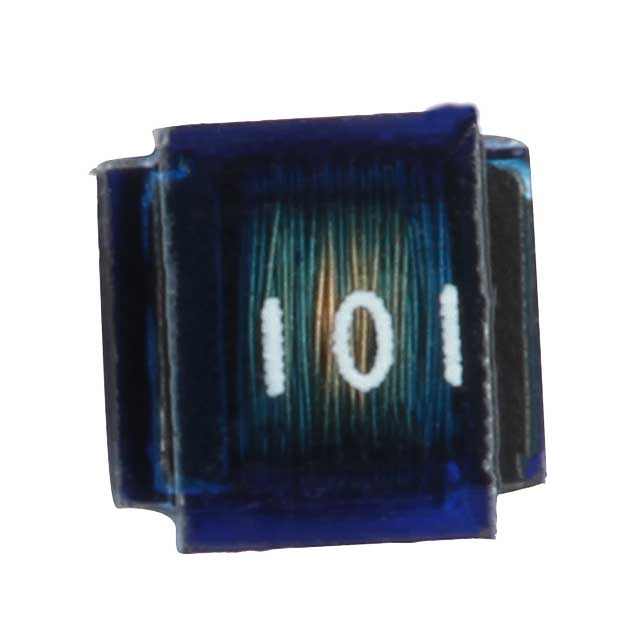

WCL Series

RF Inductors - SMD .39 UH 20%

Manufacturer: Eaton - Electronics Division

Catalog

RF Inductors - SMD .39 UH 20%

Catalog

RF Inductors - SMD .39 UH 20%

...

Part	DC Resistance (DCR) [Max]	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Package / Case	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Frequency - Self Resonant	Tolerance	Mounting Type	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Material - Core	Package / Case	Supplier Device Package	DC Resistance (DCR)	Q @ Freq	Q @ Freq [custom]
Eaton - Electronics Division WCL3225-470-R	5.2 Ohm	Unshielded	2.52 MHz	10	Nonstandard	Drum Core Wirewound	2.25 mm	0.089 in	2.52 MHz	10 MHz	5 %	Surface Mount	47 µH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	140 mA	Ceramic
Eaton - Electronics Division WCL2520-R680-R		Unshielded			1008	Drum Core Wirewound	2.1 mm	0.083 in	25.2 MHz	330 MHz	5 %	Surface Mount	0.68 µH	85 °C	-40 C	2.92 mm	0.11 "	2.79 mm	0.115 "	600 mA	Ceramic	2520 Metric	1008	450 mOhm	12 25.2 MHz
Eaton - Electronics Division WCL2520-221-R	18 Ohm	Unshielded		8	1008	Drum Core Wirewound	2.1 mm	0.083 in	0.796 MHz	2.5 MHz	5 %	Surface Mount	220 µH	85 °C	-40 C	2.92 mm	0.11 "	2.79 mm	0.115 "	0.02 A	Ceramic	2520 Metric	1008			796 kHz
Eaton - Electronics Division WCL3225-101-R	6.8 Ohm	Unshielded		8	1210	Drum Core Wirewound	2.25 mm	0.089 in	0.796 MHz	5 MHz	5 %	Surface Mount	100 µH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	0.095 A	Ceramic	3225 Metric	1210			796 kHz
Eaton - Electronics Division WCL3225-271-R	18 Ohm	Unshielded		8	1210	Drum Core Wirewound	2.25 mm	0.089 in	0.796 MHz	2.5 MHz	5 %	Surface Mount	270 µH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	60 mA	Ceramic	3225 Metric	1210			796 kHz
Eaton - Electronics Division WCL3225-R12-R		Unshielded	25.2 MHz	20	1210	Drum Core Wirewound	2.25 mm	0.089 in	25.2 MHz	850 MHz	5 %	Surface Mount	120 nH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	0.45 A	Ceramic	3225 Metric	1210	200 mOhm
Eaton - Electronics Division WCL2520-820-R		Unshielded	2.52 MHz	10	1008	Drum Core Wirewound	2.1 mm	0.083 in	2.52 MHz	6.5 MHz	5 %	Surface Mount	82 µH	85 °C	-40 C	2.92 mm	0.11 "	2.79 mm	0.115 "	45 mA	Ceramic	2520 Metric	1008
Eaton - Electronics Division WCL2520-6R8-R	2 Ohm	Unshielded			1008	Drum Core Wirewound	2.1 mm	0.083 in	7.96 MHz	35 MHz	5 %	Surface Mount	6.8 µH	85 °C	-40 C	2.92 mm	0.11 "	2.79 mm	0.115 "	175 mA	Ceramic	2520 Metric	1008		7.96 MHz 12
Eaton - Electronics Division WCL3225-1R5-R	400 mOhm	Unshielded			1210	Drum Core Wirewound	2.25 mm	0.089 in	7.96 MHz	200 MHz	5 %	Surface Mount	1.5 µH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	0.45 A	Ceramic	3225 Metric	1210		7.96 MHz 12
Eaton - Electronics Division WCL3225-150-R	2 Ohm	Unshielded	2.52 MHz	10	1210	Drum Core Wirewound	2.25 mm	0.089 in	2.52 MHz	22 MHz	5 %	Surface Mount	15 µH	85 °C	-40 C	3.5 mm	0.114 in	2.9 mm	0.138 in	225 mA	Ceramic	3225 Metric	1210
