ADC081S101-MIL Series

Single Channel, 0.5 to 1 Msps, 8-Bit A/D Converte

Catalog

Single Channel, 0.5 to 1 Msps, 8-Bit A/D Converte

Part	Architecture	Package / Case	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Sampling Rate (Per Second)	Number of A/D Converters	Number of Inputs	Supplier Device Package	Ratio - S/H:ADC	Input Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface	Configuration	Number of Bits	Mounting Type	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments ADC081S101CIMF/NOPB	SAR	SOT-23-6	5.25 V	2.7 V	1 M	1	1	SOT-23-6	1:1	Single Ended	2.7 V	5.25 V	DSP SPI	S/H-ADC	8	Surface Mount	Supply	85 °C	-40 °C
Texas Instruments ADC081S101 MWC		Die						Wafersale								Surface Mount

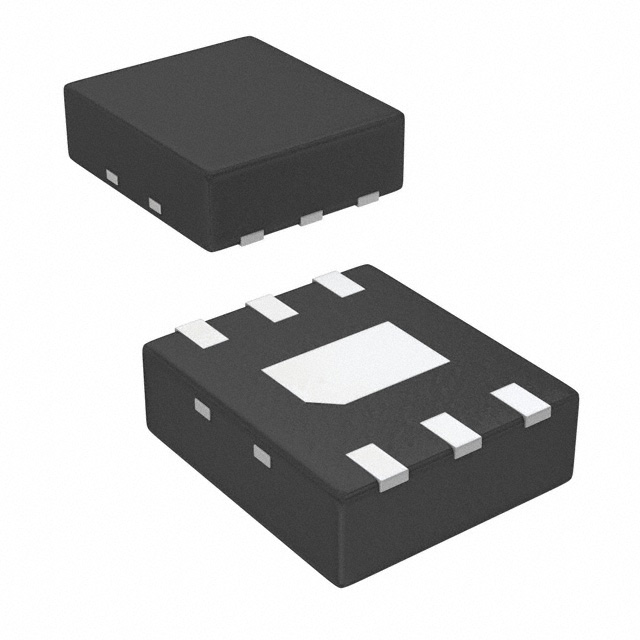

Texas Instruments ADC081S101CISD/NOPB	SAR		5.25 V	2.7 V	1 M	1	1	6-WSON (2.2x2.5)	1:1	Single Ended	2.7 V	5.25 V	DSP SPI	S/H-ADC	8	Surface Mount	Supply	85 °C	-40 °C
Texas Instruments ADC081S101CIMFX/NOPB	SAR	SOT-23-6	5.25 V	2.7 V	1 M	1	1	SOT-23-6	1:1	Single Ended	2.7 V	5.25 V	DSP SPI	S/H-ADC	8	Surface Mount	Supply	85 °C	-40 °C

Catalog

Single Channel, 0.5 to 1 Msps, 8-Bit A/D Converte

Key Features

• Specified Over a Range of Sample Rates6-Lead WSON and SOT-23 PackagesVariable Power ManagementSingle Power Supply with 2.7-V - 5.25-V RangeSPI™/QSPI™/MICROWIRE/DSP CompatibleDNL ± 0.07 LSB (typ)INL ± 0.05 LSB (typ)SNR 49.7 dB (typ)Power Consumption3-V Supply 2.0 mW (typ)5-V Supply 10.0 mW (typ)Specified Over a Range of Sample Rates6-Lead WSON and SOT-23 PackagesVariable Power ManagementSingle Power Supply with 2.7-V - 5.25-V RangeSPI™/QSPI™/MICROWIRE/DSP CompatibleDNL ± 0.07 LSB (typ)INL ± 0.05 LSB (typ)SNR 49.7 dB (typ)Power Consumption3-V Supply 2.0 mW (typ)5-V Supply 10.0 mW (typ)

Description

The ADC081S101-MIL is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S101-MIL is fully specified over a sample rate range of 500 ksps to 1 Msps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC081S101-MIL operates with a single supply that can range from 2.7 V to 5.25 V. Normal power consumption using a +3 V or +5 V supply is 2.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 2.5 µW using a +5 V supply. The ADC081S101-MIL is packaged in an 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured. The ADC081S101-MIL is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S101-MIL is fully specified over a sample rate range of 500 ksps to 1 Msps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC081S101-MIL operates with a single supply that can range from 2.7 V to 5.25 V. Normal power consumption using a +3 V or +5 V supply is 2.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 2.5 µW using a +5 V supply. The ADC081S101-MIL is packaged in an 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
