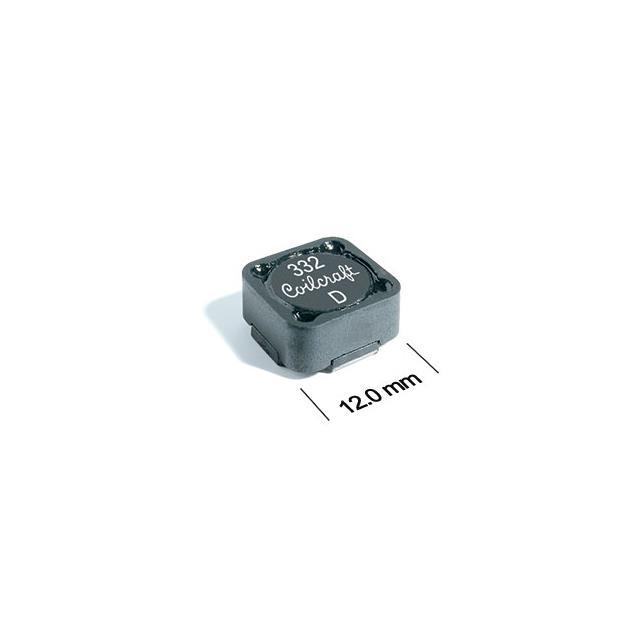

MSS1260 Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 180UH SHLD 10% 1.58A 246MOHMS AECQ2
| Part | Shielding | DC Resistance (DCR) | Inductance Frequency - Test | Inductance | Mounting Type | Package / Case | Ratings | Current Rating (Amps) | Material - Core | Tolerance | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Frequency - Self Resonant | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | Shielded | 246 mOhm | 100 kHz | 180 µH | Surface Mount | Nonstandard | AEC-Q200 | 1.58 A | Ferrite | 10 % | 1.4 A | 12 mm | 0.472 in | 0.472 " | 12 mm | 85 °C | -40 C | Drum Core | 6.1 MHz | 0.244 in | 6.2 mm |
Coilcraft | Shielded | 1.335 Ohm | 100 kHz | 1 mH | Surface Mount | Nonstandard | AEC-Q200 | 0.68 A | Ferrite | 10 % | 0.6 A | 12 mm | 0.472 in | 0.472 " | 12 mm | 85 °C | -40 C | Drum Core | 2.4 MHz | 0.244 in | 6.2 mm |
